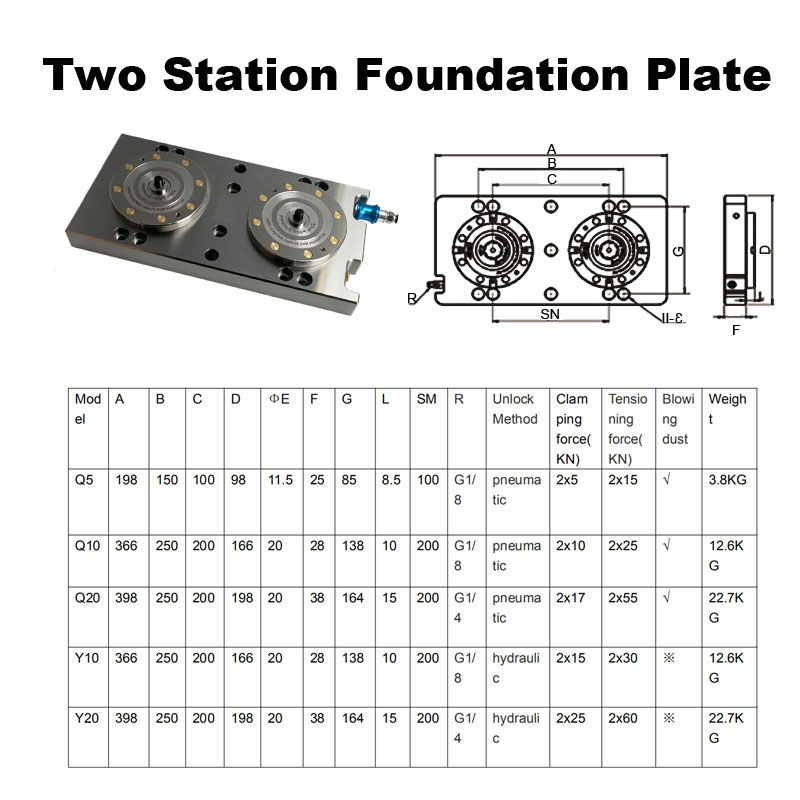

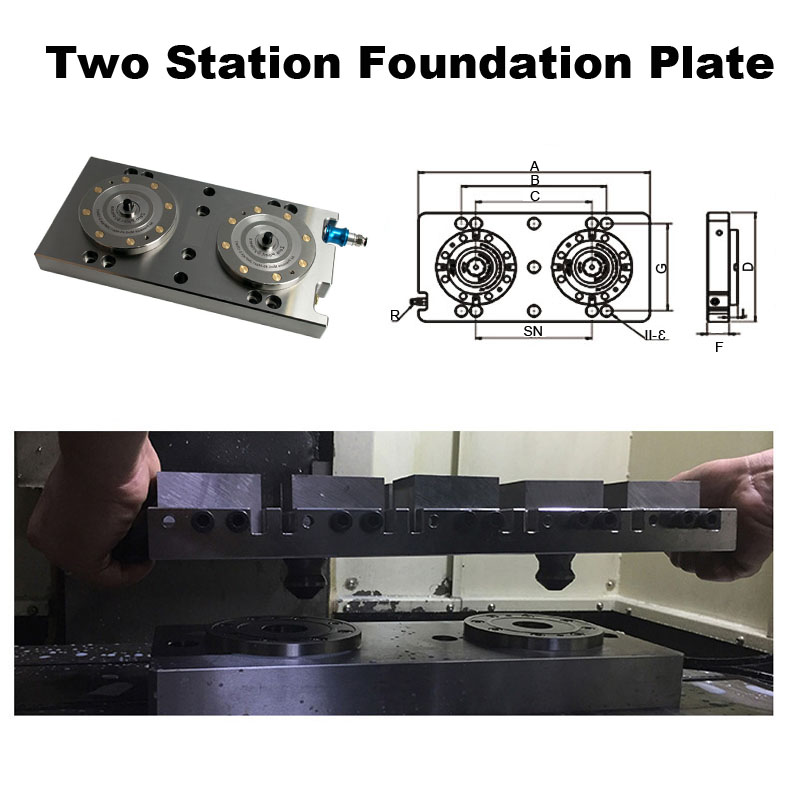

Two Station Foundation Plate
FEATUERS:
Unlock mode: pneumatic unlock / hydraulic unlock
Pneumatic automatic chip removal
Material: die steel (#)
Surface and piston hardening treatment
Repeat positioning accuracy <0.005mm

DESIGN FEATURES
The UNILOCK is suitable for machine tool workstations with T groove spacing of 100 and 125mm, which are

fastened by countersunk head bolts. At least two positioning holes for accurate positioning.

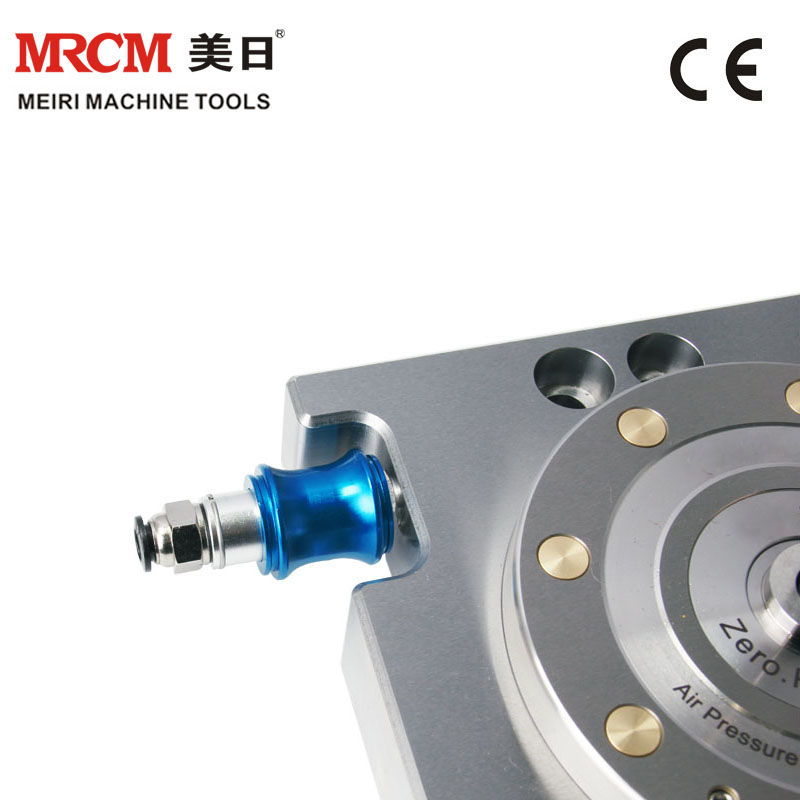

The distance between two locator is 200mm. Pneumatic unlocking and installing pneumatic quick connector,
hydraulic unlocking and installing hydraulic quick connector, pneumatic dust removal performance interface can
be selectively connected
