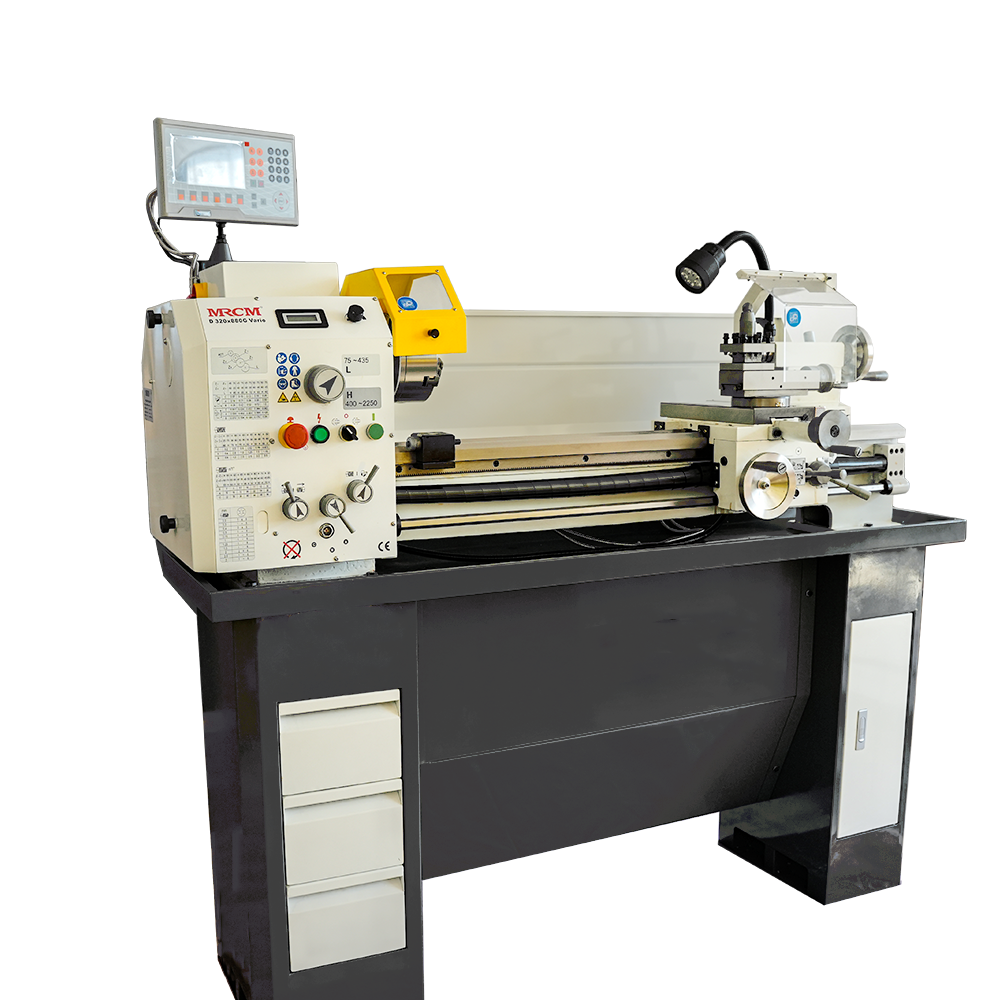

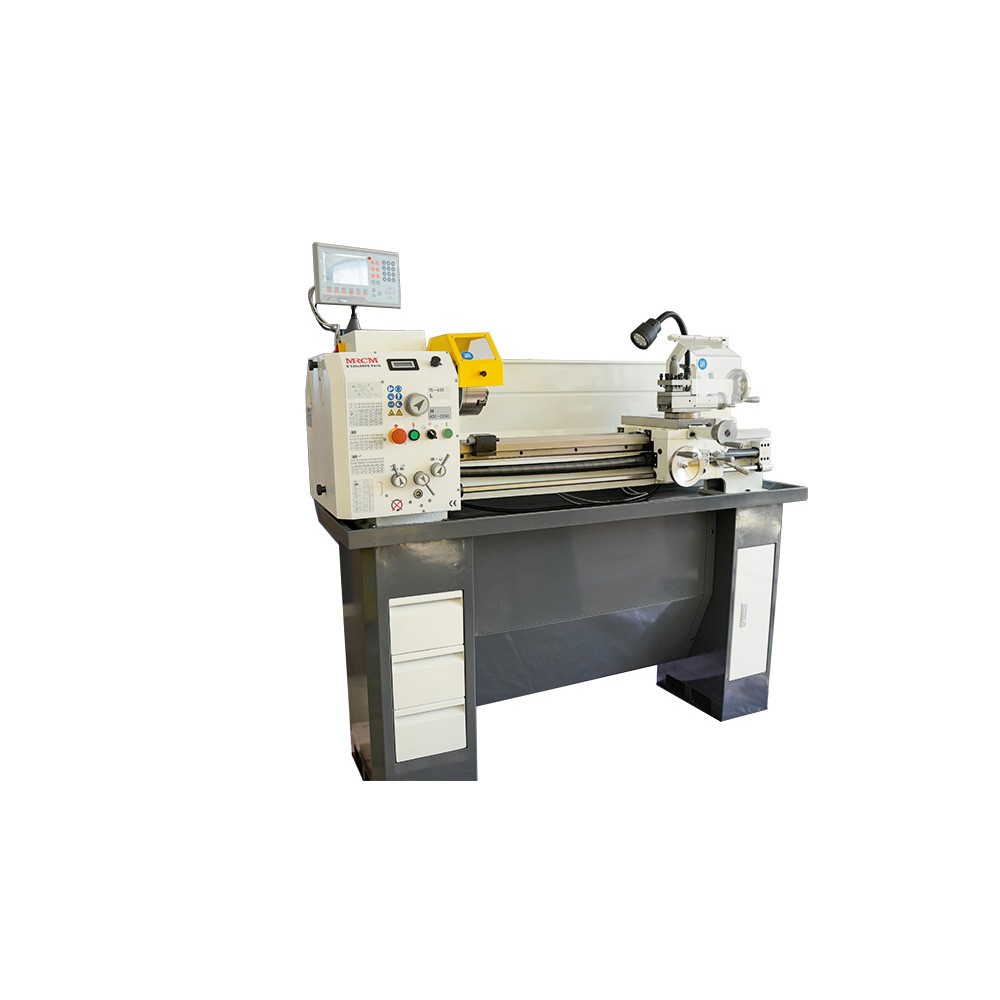

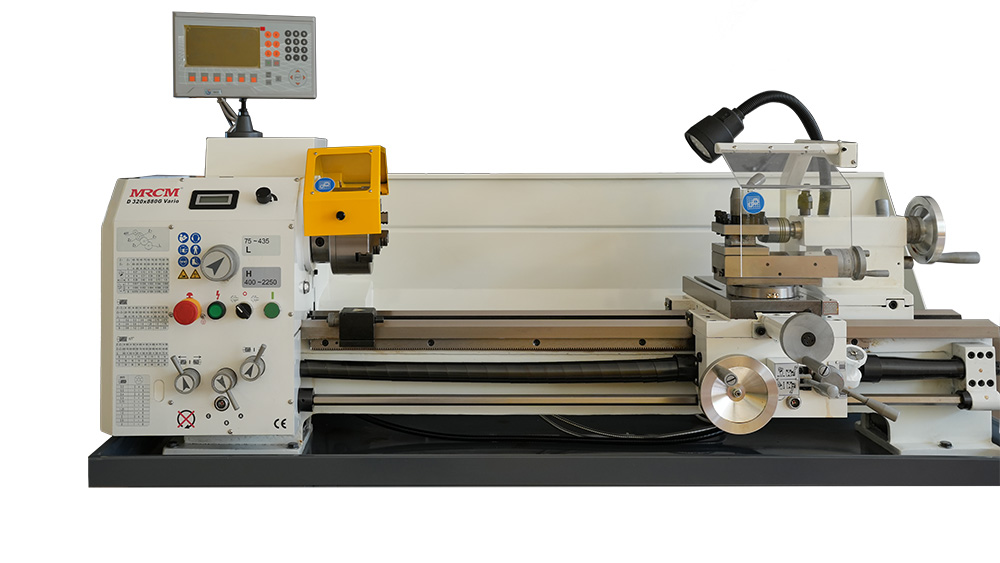

Built from quality components, like ground and hardened ways, this variable-speed benchtop lathe will last for many years.

The mini metal lathe is built to last with high-quality cast iron. They come equipped with wear-resistant and strong metal gears and aluminum alloy handwheels, ensuring a longer service life.

Features a spindle that can turn in both forward and reverse directions with 75-2250 RPM continuously variable speed range. It also has intelligent electric speed controls and a digital display, allowing for convenient data reading.

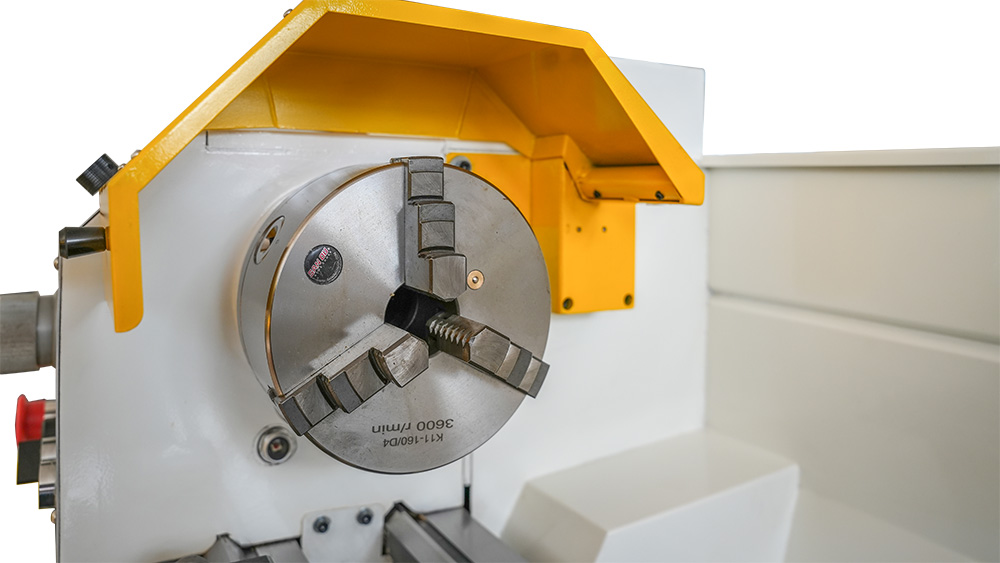

Our power metal lathes have multiple security features in case of emergency, ensuring operator security. These include an emergency stop switch, overload protection, chuck cover power off switch, and a main control panel security switch.



Model No.	D320×880 Vario
Disfance between centers	880mm
Swing over bed	320mm
Swing over cross slide	200mm
Width of bed	180mm
Spindle bore taper	MT5
Spindle bore	38mm
Spindle nose	D1-4
Range of spindle speed	75-435/400-2250rpm
Range of longitudinal feeds	0.07-0.52mm/r
Range of cross feeds	0.017-0.25mm/r
Range of inch threads	8-56tpi
Range of metric threads	0.2-3.5mm
Max. tool section	16x16mm
Top slide travel	80mm
Cross slide travel	165mm
Tailstock quill travel	80mm
Tailstock quill taper	MT3
Motor power	1.5kw
Net weight	350kg
Packing size	1600x750x700mm
