Applying to non-heat treatment workpiece for such as various mould,part of machine's chamfer.
R300D is the complex chamfering machine for R angle and C angle chamfering.
Specification
Model：MR-R300D
Chamfering height：R1/R2/R3/R4/R 5/C3
Power：220V/50HZ/550W
Speed：3000RPM-6000RPM
Dimension：40*30*20CM
Weight：27KG
Standard Equipment：R3 Inserts*1 set
Option Equipment：R1 inserts, R2 Inserts, R4 Inserts, R5 inserts/ C3 inserts

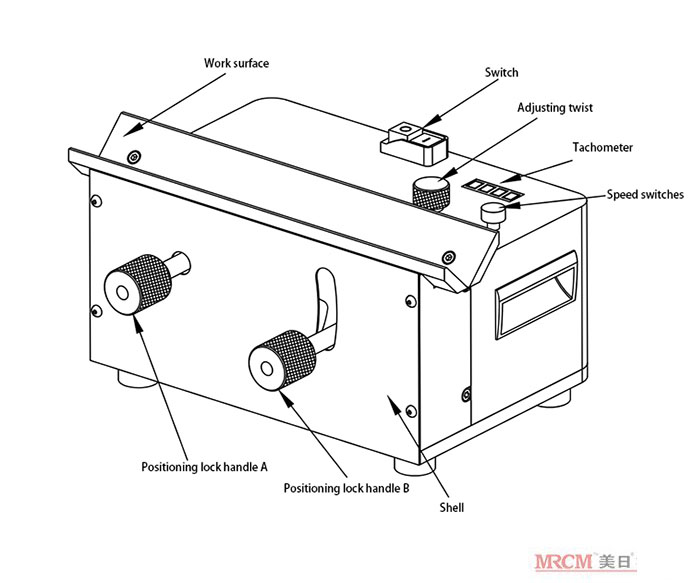

Product Structure

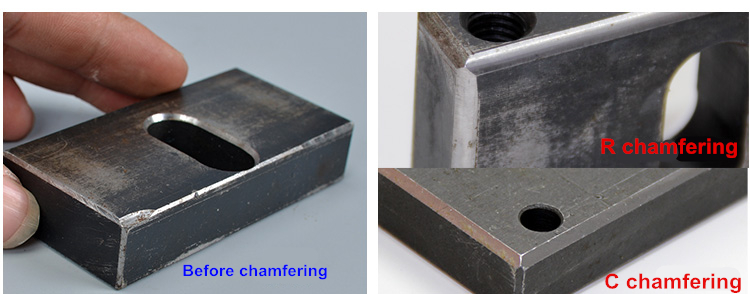

Grinding Effect

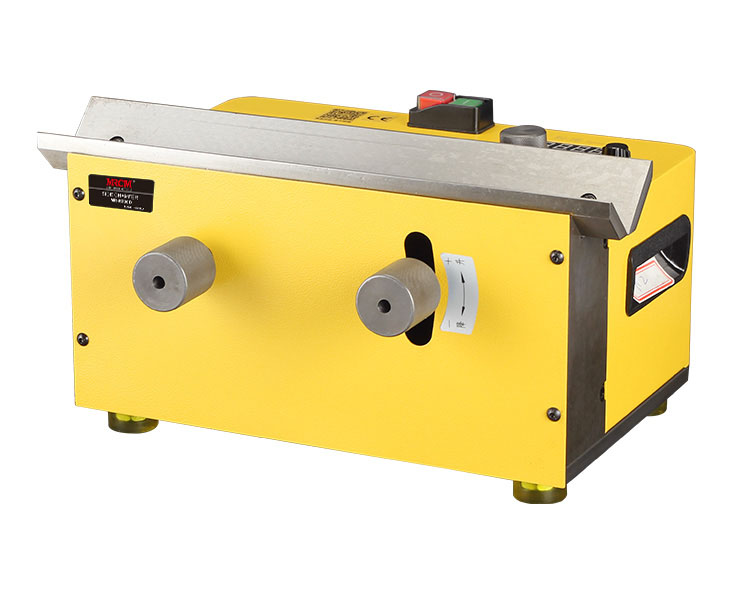

Product Demonstration
