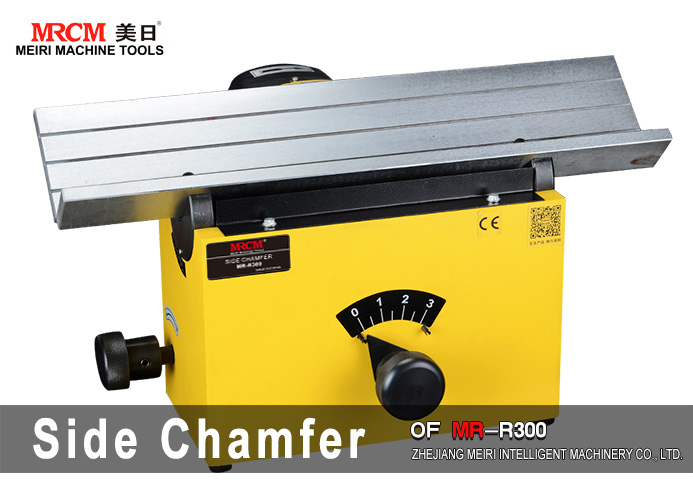

MR-R300 Side Chamfer

Description:

VIDEO:

VIDEO

FEATURES:

STANDARD EQUIPMENT
1.Suitable for non-heat treatment workpiece ,which can chamfer various mould and mechanic conponent.

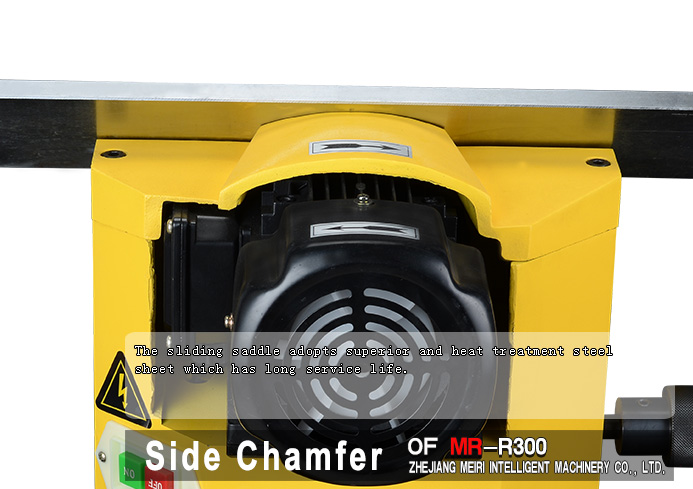

2.The sliding saddle adopts superior and heat treatment steel sheet which has long service life.

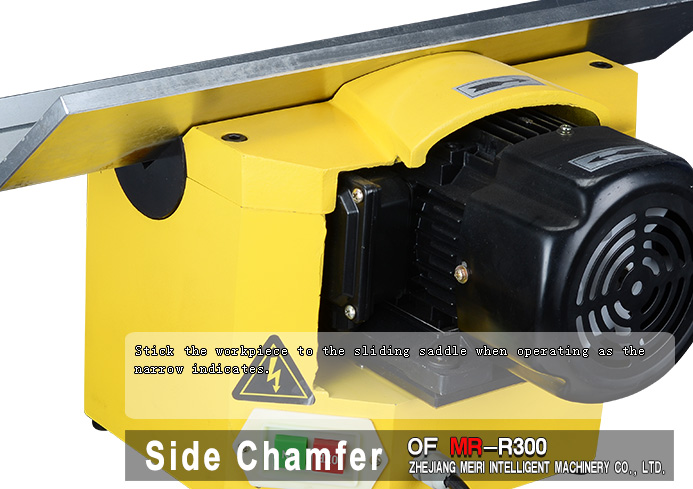

3.No need to clamp,easy operation and adjustment,neat chamfer surface,economic and reliable,highly enhance the efficiency,suitable for batch processing.
4.Adopting milling cutter and tungsten steel quadrilateral edge 4130511 is fast and convenient
5.It adopt side mill-cutter ,hard alloy 4-flute blade is  easy to replace,you can also use the  old blade .
6.The chamfer surface is perfect.
Remark: recommend Less 2mm grinding volume per time.
SPECIFICATION

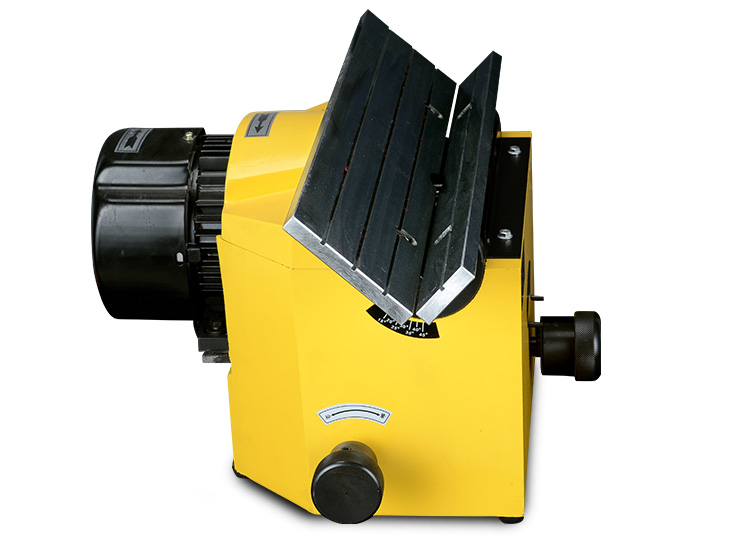

Chamfering angle: 15°- 45°

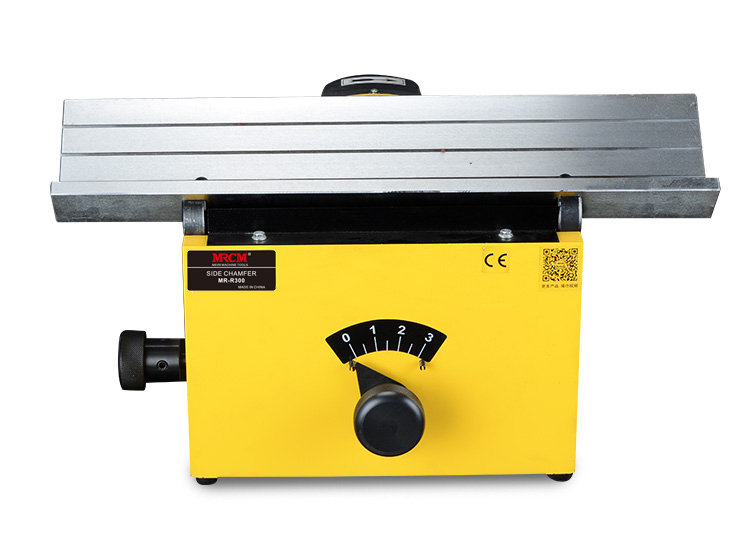

Chamfering range: 0-3
Power: 380V  250W  50HZ
Platforn Dia: 500mm
Dimension: 51.5×35.5×28cm
Package Dimension: 53.5×38.5×30cm
N.G./G.W: 34kg/38kg

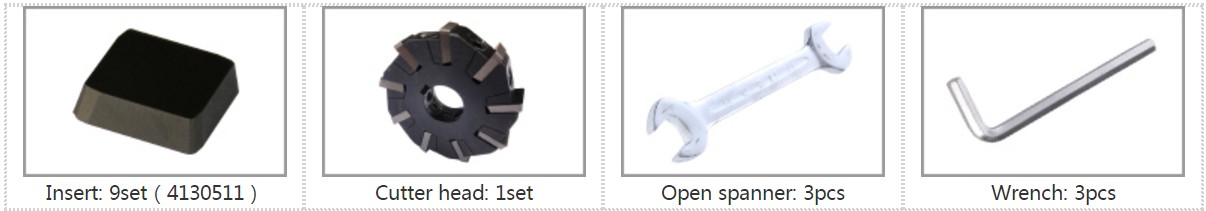

STANDARD EQUIPMENT
metal chamfering machine

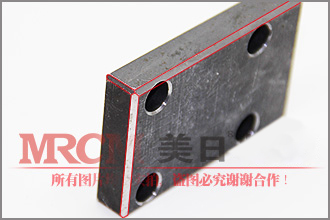

Gringing Effect
manual chamfering machine
chamfering machine pipe
Applying to chamfer non-heat treatment workpieces,for example:all kinds of mould shelf and mechanical parts
plate chamfering machine
pneumatic chamfering machine
Without clamping,easy operation,perfect chamfering,easy adjustment.It is economic,suitable for batch processing parts' enterprises.
