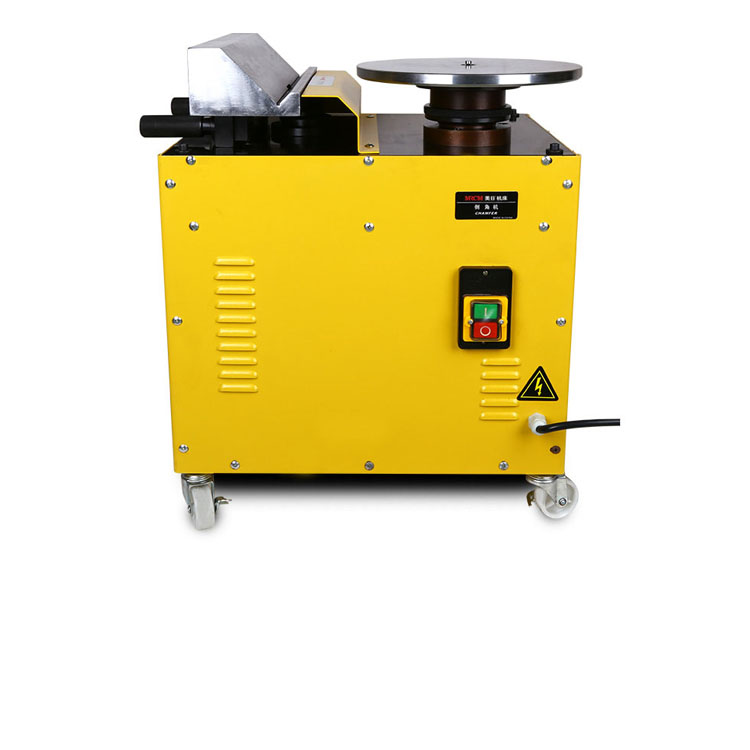

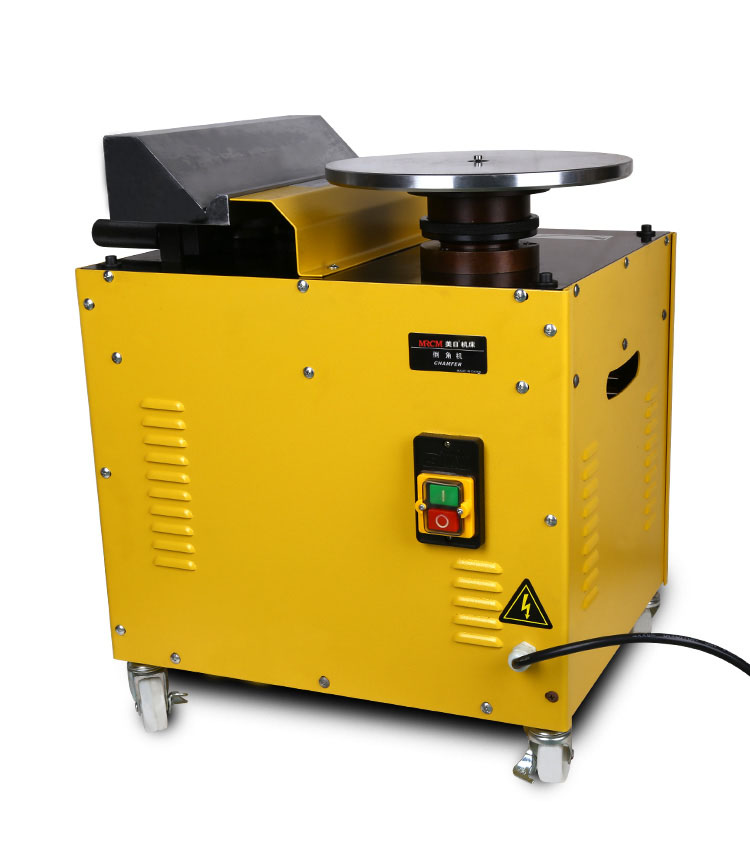

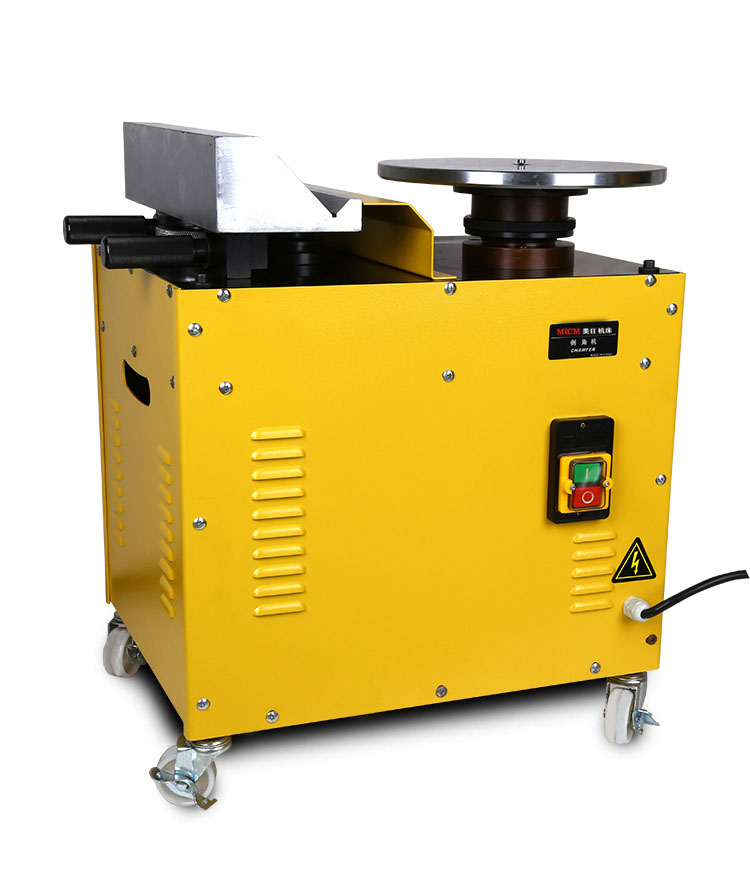

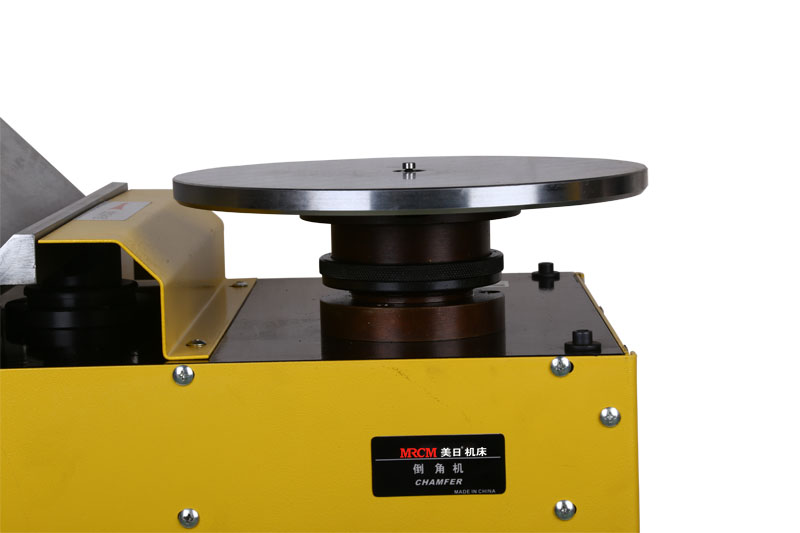

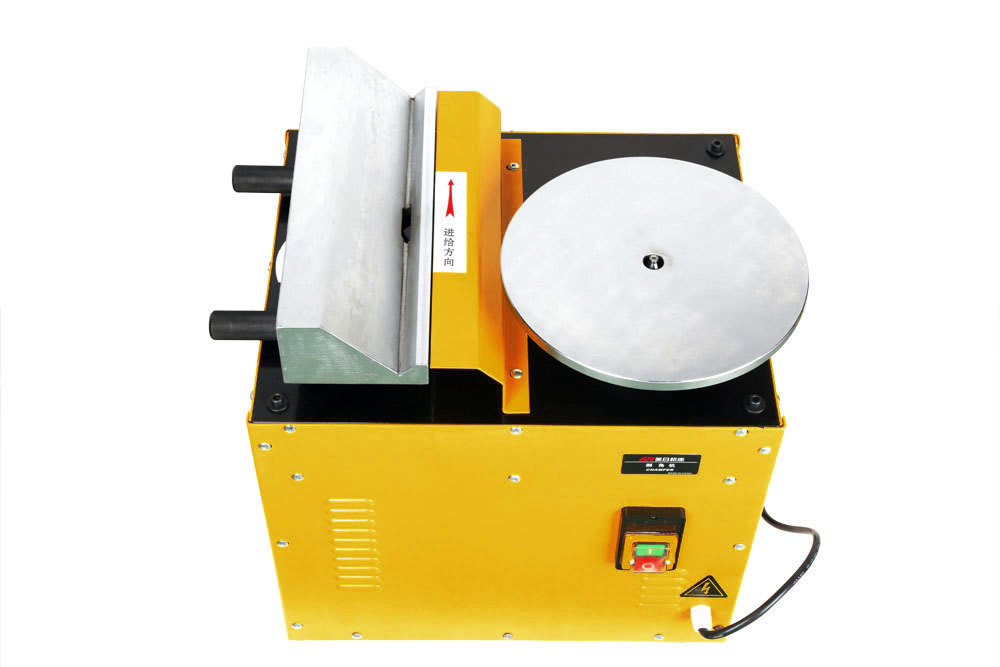

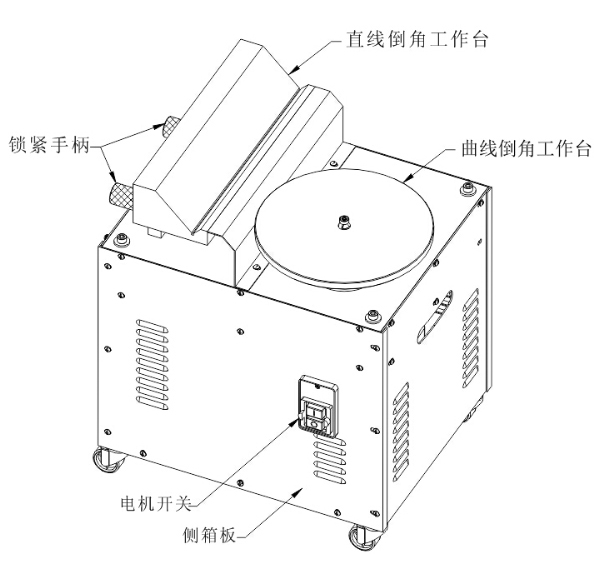

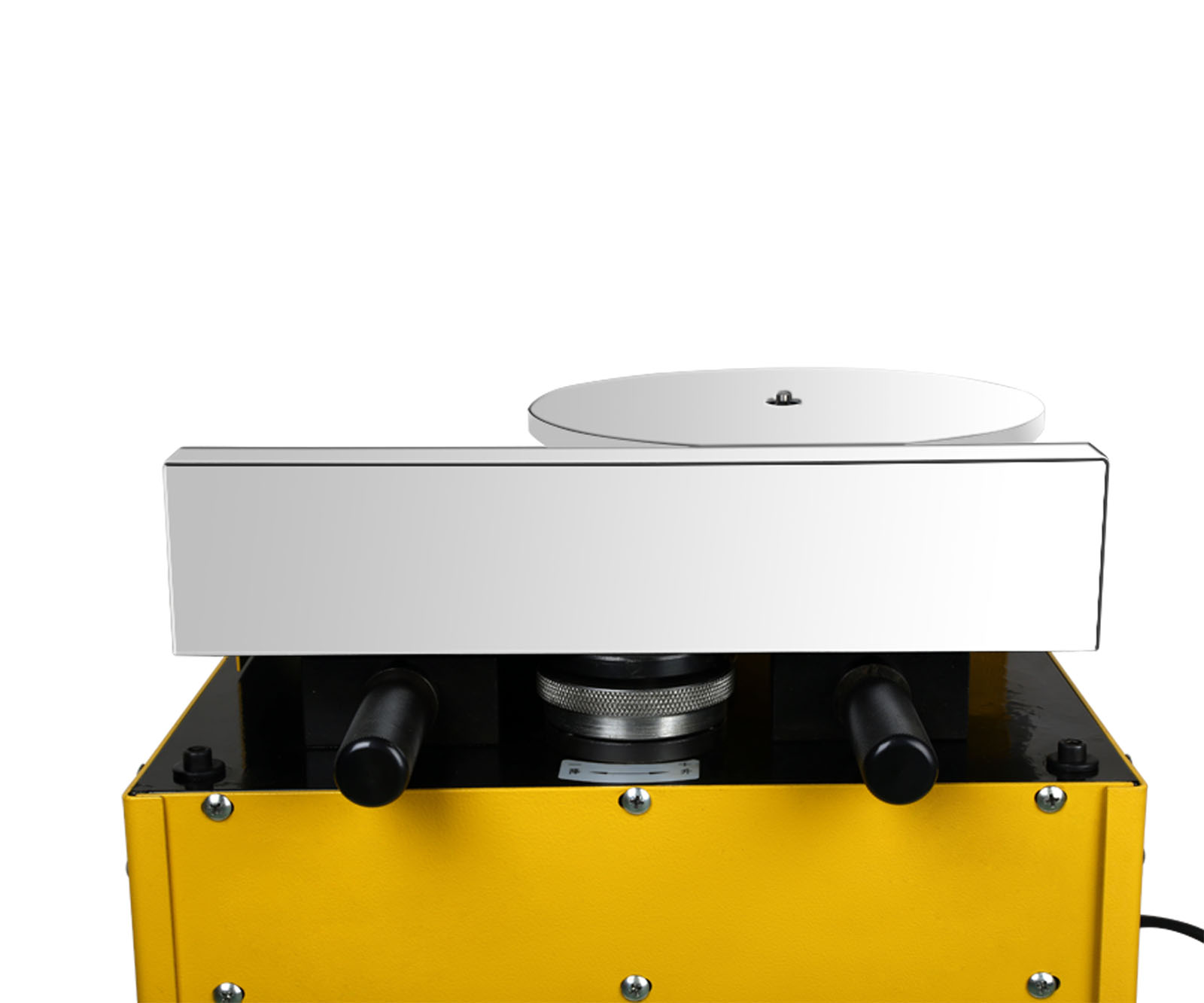

MR - R800 Complex Charmfer

CHAMFER Hits(182)
It is suitable for reqular and irreqular parts of mechanism or mould. The angle of R800 straight line part can be adjust form 15 degree to 45 degree.

Specification:
Charmfering range : straight 0-3mm   curved 0-2.5mm
Charmfering angle : straight 15°-45°   curved 45°
                                 curved 45°           straight 45°
Power : 380V   750W
Speed : straight 8500rpm        curved 12000rpm
Dimension/Weight :52x44x69cm/68kg
