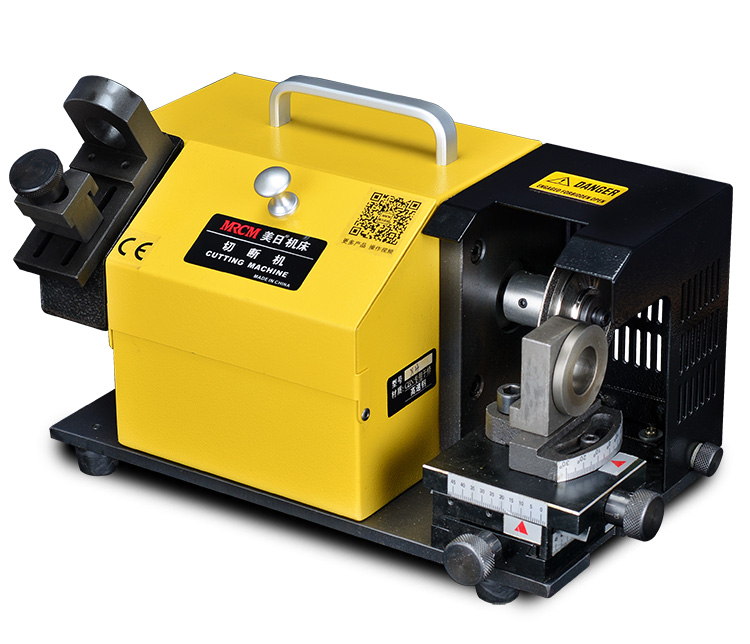

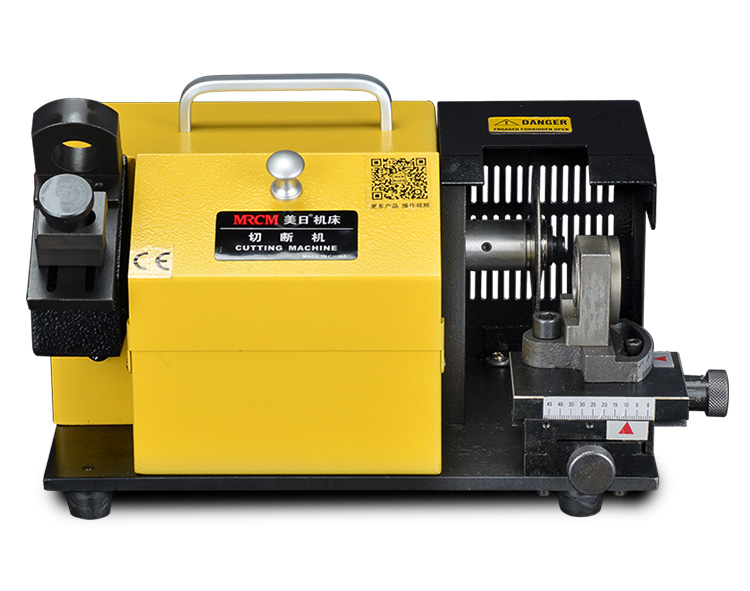

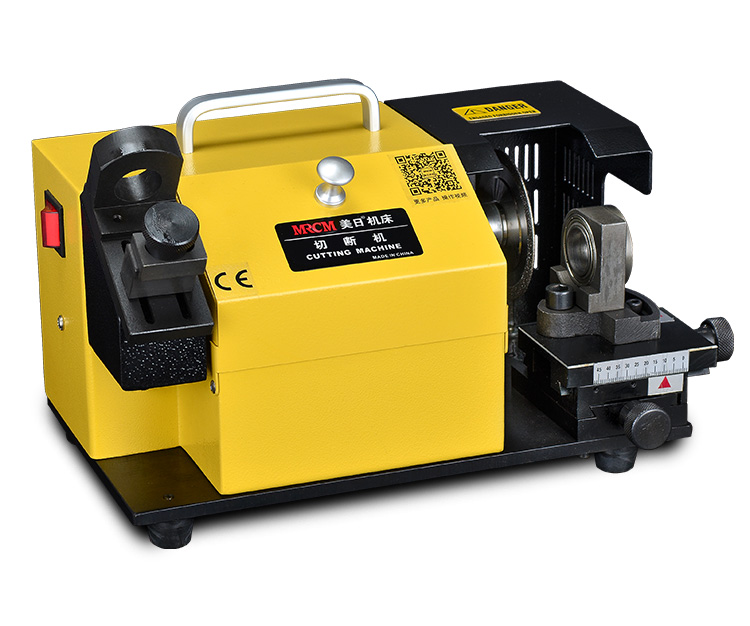

MR-X4 Tool Cutting Machine

CUTTING MACHINE Hits(239)
PRODUCT INSTRUCTION
      Standard with SDC grinding wheel for the carbide material, Optional CBN grinding wheel for the HSS material.
SPECIFICATION
Model: MR-X4
Grinding range: ф4-ф14mm
Power: 220V/160W
Speed: 4400rpm
Standard grinding wheel: SDC (for carbide material)

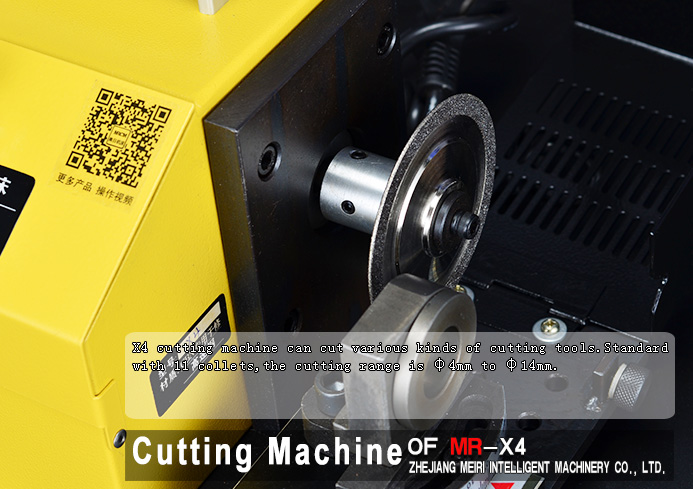

Standard 11 collets: ф4、ф5、ф6、ф7、ф8、ф9、ф10、ф11、ф12、ф13、ф14
Optional grinding wheel: CBN (for HSS)
Dimension: 35x23x27cm
N.W./G.W: 10KG/11kg

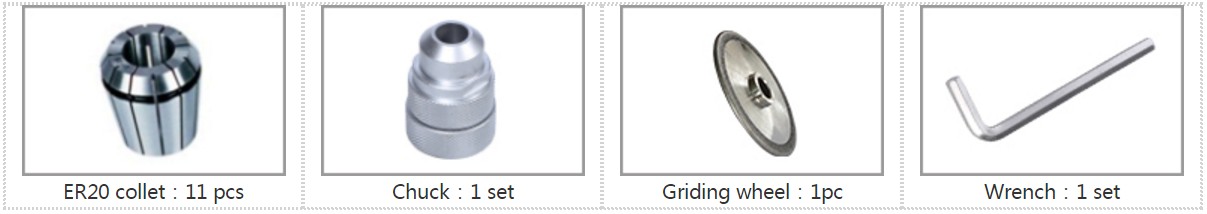

STANDARD EQUIPMENT

Product Demonstration
It is portable cutting machine,mainly used to cut the old tools to satisfy the needs of re-sharpening the cutting edge.

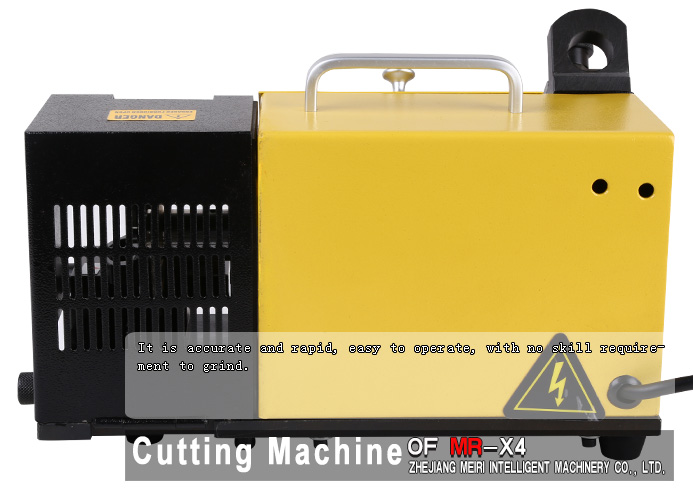

It is accurate,fast and easy to operate,without any skill requirement,economical and pracical.

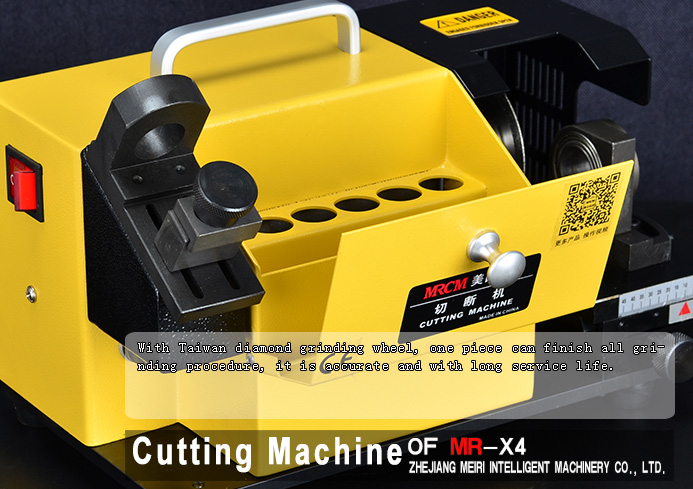

With Taiwan diamond grinding wheel,angle design is scientific.It is accurate and with long service life.
