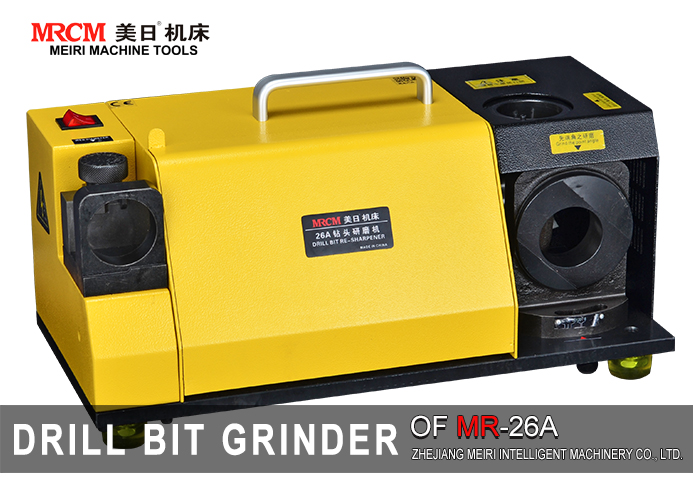

MR-26A Drill Bit Re-sharpener
1.Portable drill bit re-sharpen, twist drill grinder.
2.Grinding is accurate and rapid, easy operation, with no skill to grind.
3.Economical price that greatly reduces the cost and improves the use effect.
4.With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
5.The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
6.Bearing shaft and locking unit.
7.The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can
control the quality precision and prolong the service life of the drill bit.
Standard with CBN grinding wheel for the HSS material, Optional SDC grinding wheel for the carbide material.

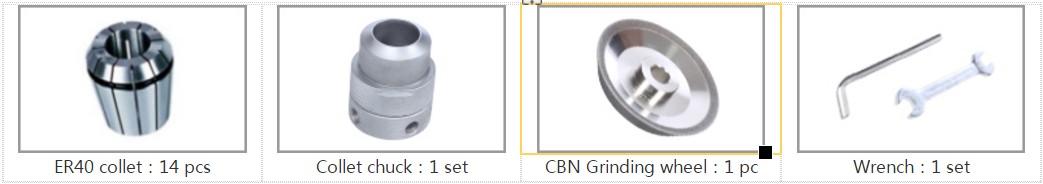

Standard Equipment：grinding wheel :CBN (for HSS)×1

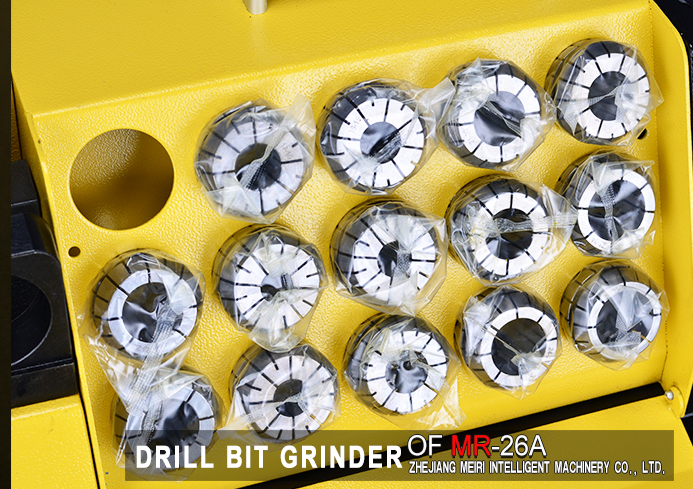

fourteen collets: Φ13, Φ14, Φ15, Φ16, Φ17, Φ18, Φ19, Φ20, Φ21, Φ22, Φ23, Φ24, Φ25, Φ26
Option Equipment：grinding wheel :SD (for Carbide)×1
Φ8, Φ9, Φ10, Φ11, Φ12, Φ27, Φ28, Φ29, Φ30,Φ31,Φ32
DRILL BIT SHARPENER
More than10 YEAR BENCHMARKING PRODUCTS WITH A GREAT REPUTATION
Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results。
10 SECONDS FAST GRINDING, MAKE DRILL RE-USE
The quickest grinding of a bit is only 10 seconds.
Precision grinding, fast and efficient.
BIGGER SIZE, SUITABLE FOR ANY PLACE TO DO DRILL GRINDING.
EASY TO DO THE DRILL SETTING
According the diameter of the drill to adjust the scale, the operation steps are clear. High precision and high efficiency.

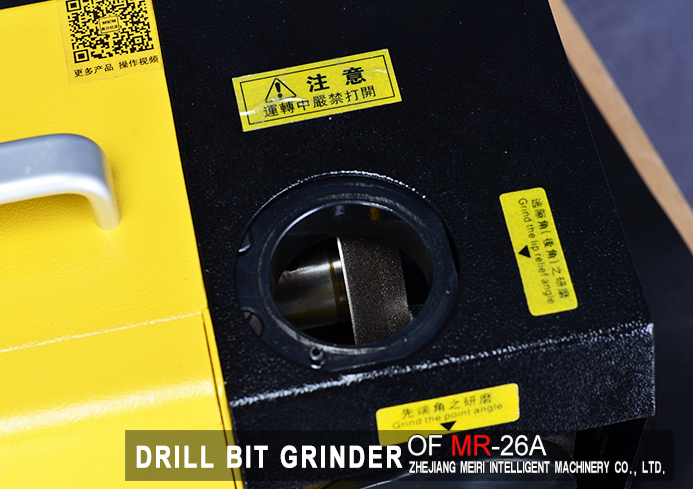

EASY FOR DRILL GRINDING
According the parallel line of the grinding hole, insert the chuck, rotate left and right. It can be finished at one time.
