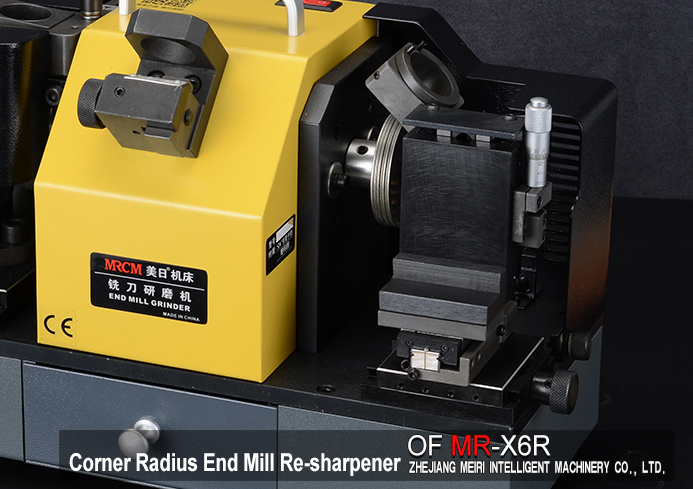

MR-X6R Corner Radius End Mill Re-sharpener

Description:

  • It is specialized in re-sharpening end mill and corner radius end mill
  • It can grind the radius of corner radius end mill
  • Grinding is accurate and rapid

More:

FEATURES:

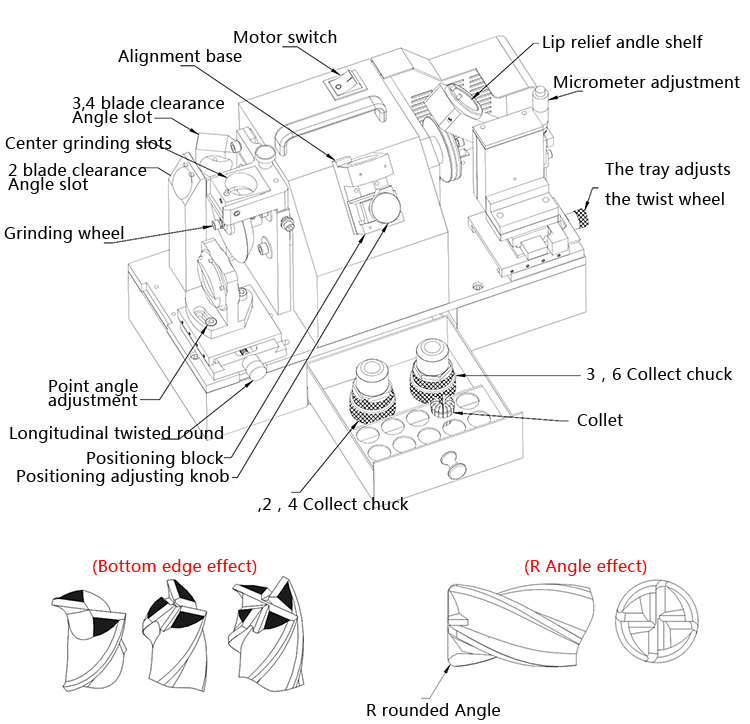

PRODUCT INSTRUCTION
1. It is specialized in re-sharpening end mill and corner radius end mill, it can grind 2-flute, 3-flute and 4-flute. Also use the tungsten bar to cut cutting edge directly.

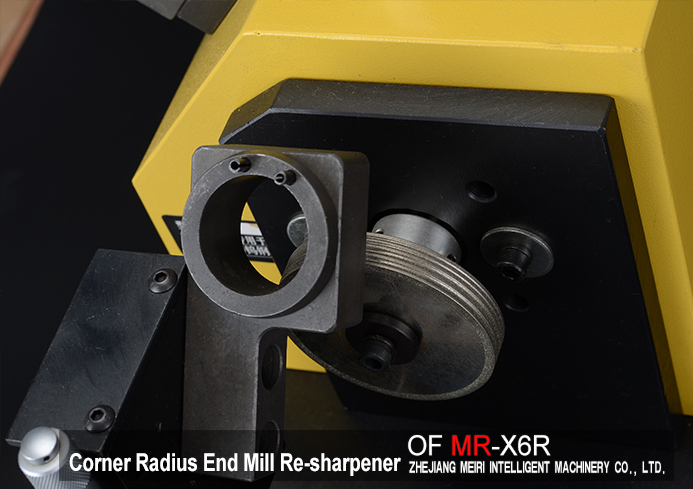

2. It can grind the radius of corner radius end mill as  R0.5, R1, R1.5 and R2. If there is any other radius, we can make the customized grinding wheel.
3. Grinding is accurate and rapid, easy operation, with no skill requirement to grind easily.

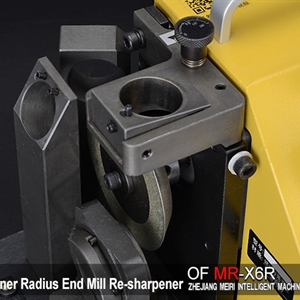

4. With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
5. The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life.
Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.

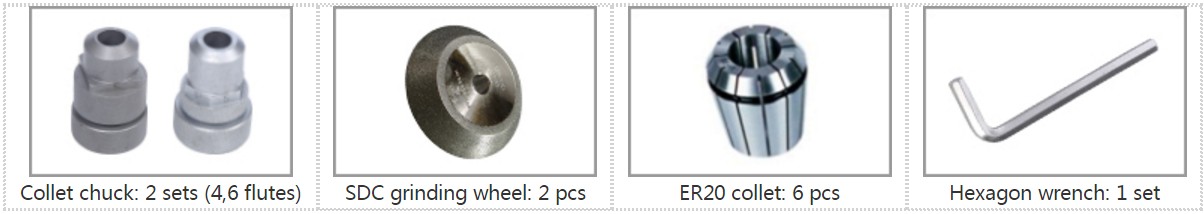

STANDARD EQUIPMENT
end mill cutters

SPECIFICATION
Model:MR-X6R
Diameter:Φ4-Φ14mm
Power:220V/250W
Speed:4400rpm
Point angle:0°-5°
Dimension:42*25*30cm
Weight:22KG
Standard Equipment:Face grinding wheel: SDC (for carbide)×1
Corner grinding wheel:SDC(for carbide)
Standard R size:R0.5,R1
Six collets:Φ4,Φ6,Φ8,Φ10,Φ12,Φ14
Two collet chucks:2,4 flutes ×1 piece;3,6 flutes×1 piece
Optional Equipment:Face grinding wheel: SDC (for carbide)
                                  Side grinding wheel: SDC (for carbide)
                                  Side grinding wheel: SDC (for carbide)(R1.5/R2)
                                  Side grinding wheel: SDC (for HSS)(R1.5/R2)
R grinding wheel:SDC (for carbide)×1

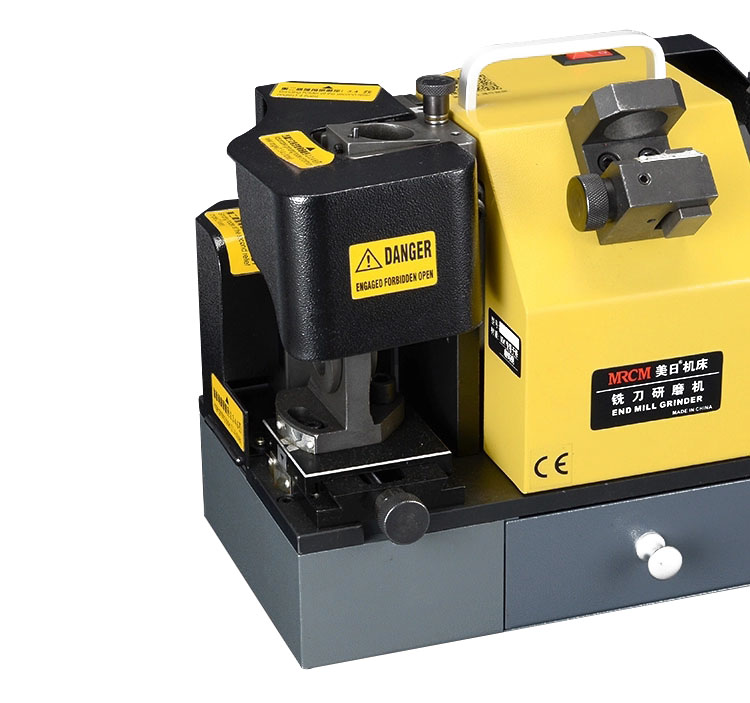

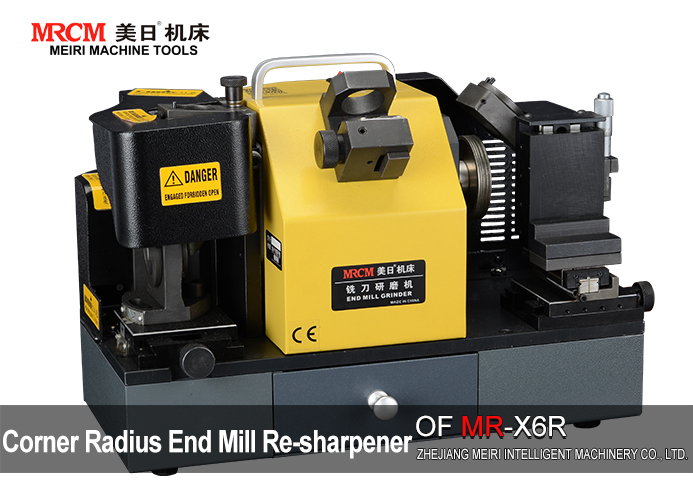

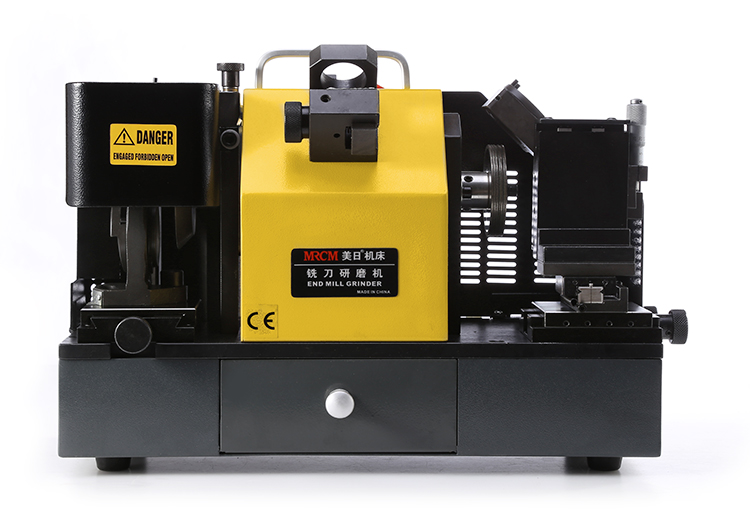

MR-X6R

         CORNER RAUDIUS END MILL SHARPENER
Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!

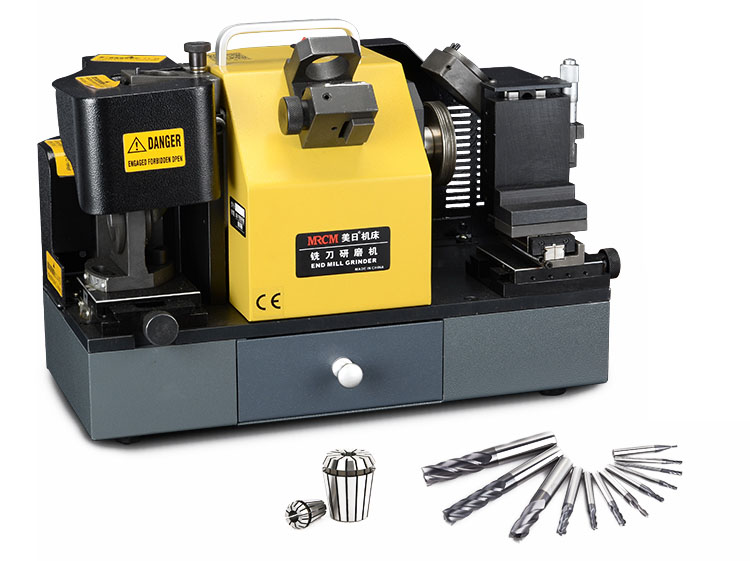

end mill grinding machine
Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small or medium enterprises, family workshops, personal repair, all can achieve satisfying grinding results。
INSISTING ON ORIGINAL DESIGN FROM CHINA
drill bit sharpening machine
spiral grinder
SMALL SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING.

drill sharpening machine

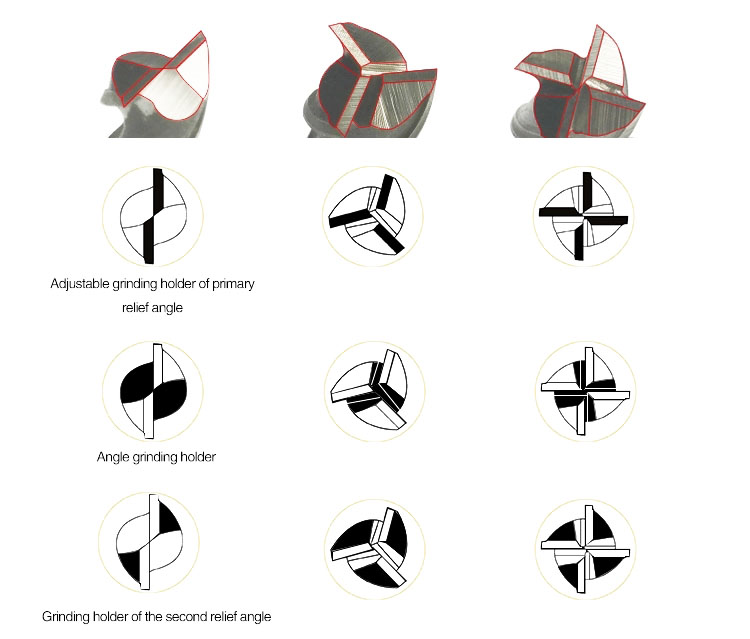

It is specialized in re-sharpening end mill and corner radius end mill, it can grind 2-flute, 3-flute and 4-flute, optional fixture group can grind 5-flute end mill cutter (bigger than Φ12mm can grind 6 -flute end mill). Also use the tungsten bar to cut cutting edge directly.
grinding machine
The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life.
grinding machine mill
