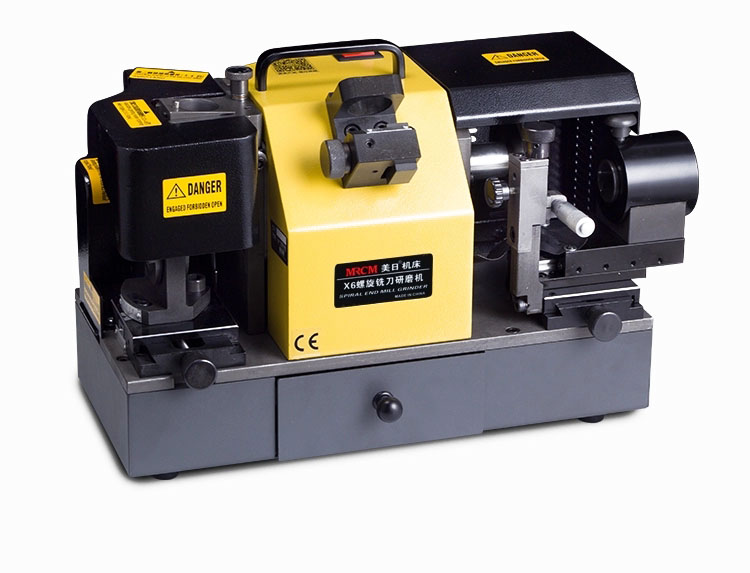

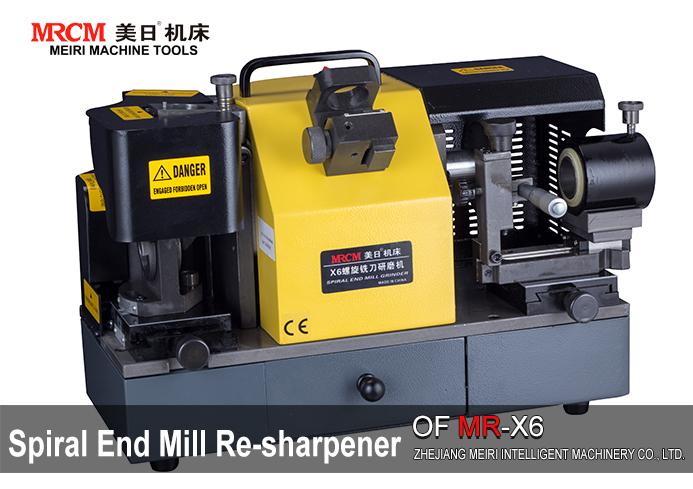

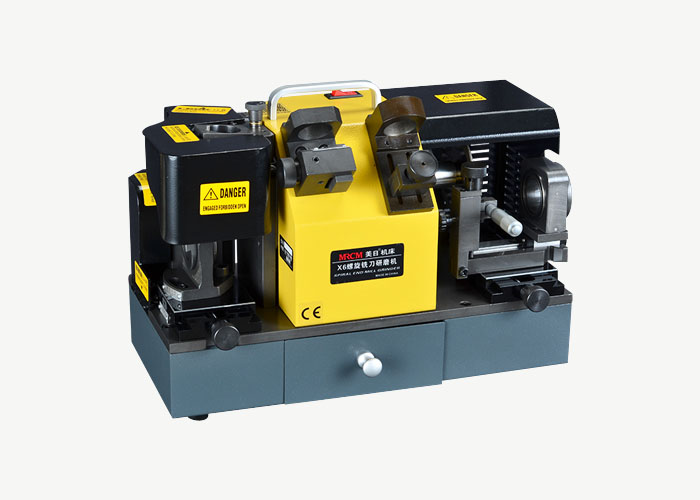

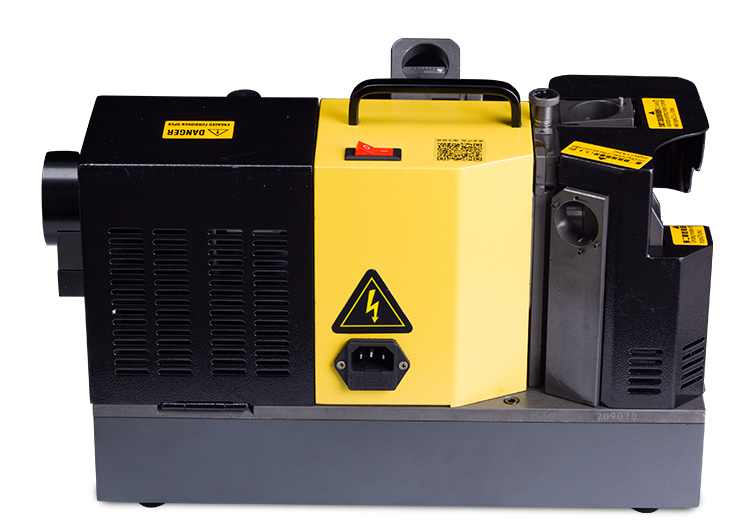

MR-X6 End Mill Re-sharpener

Description:

More:

VIDEO

FEATURES:

PRODUCT INSTRUCTION
1. Independent developing X6 includes the function of X3, and can also grind peripheral cutting edge.
2. Portable end mill grinder can grind end mill of 2-flute, 3-flute, 4-flute .
3. Grinding is accurate and rapid, easy operation, with no skill requirement to grind easily.
4. With diamond grinding wheel, only one piece can complete all procedures.  It can be equipped directly with an accurate angle and long service life.
Standard with SDC grinding wheel for the carbide material, Optional CBN grinding wheel for the HSS material.
STANDARD EQUIPMENT
4 20 mm end mill grinder

SPECIFICATION
Mode:MR-X6
Diameter:Φ4-Φ14mm
Power:220V/250W
Speed:4400rpm
Point angle:0°-5°
Dimension:40*26*30cm
Weight:25KG

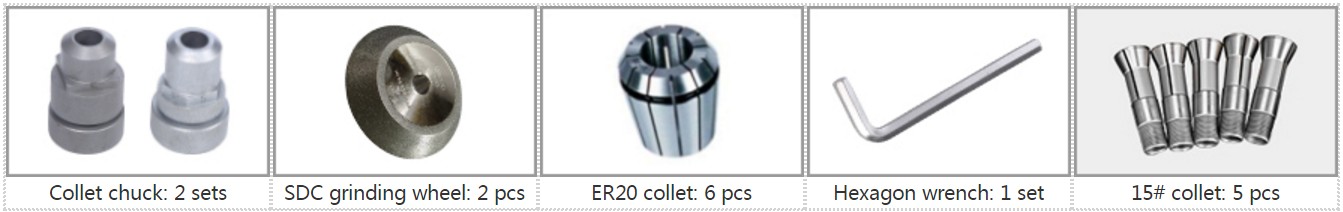

Standard Equipment:Grinding wheel :SDC (for carbide)×1
Nine collets: Φ4,Φ6,Φ8,Φ10,Φ12,Φ14
               20# collet:Φ6,Φ8,Φ10,Φ12,Φ14
Two collet chucks:2,4 flutes ×1 piece;3,6 flutes×1 piece
Optional Equipment: Grinding wheel :CBN (for HSS)
portable end mill grinder
ball end mill resharpener machine
5300rpm universal end mill grinder
china patented end mill grinder

BIG SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING
multi functional end mill sharpener
Portable end mill grinder can grind end mill of 2-flute, 3-flute, 4-flute .
high effective end mill grinder

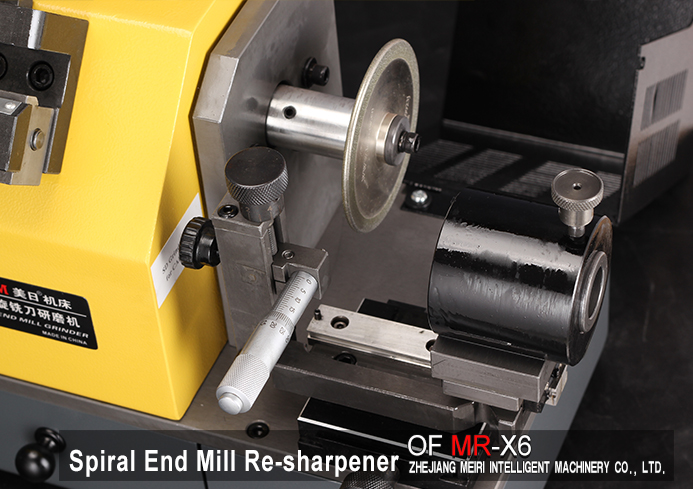

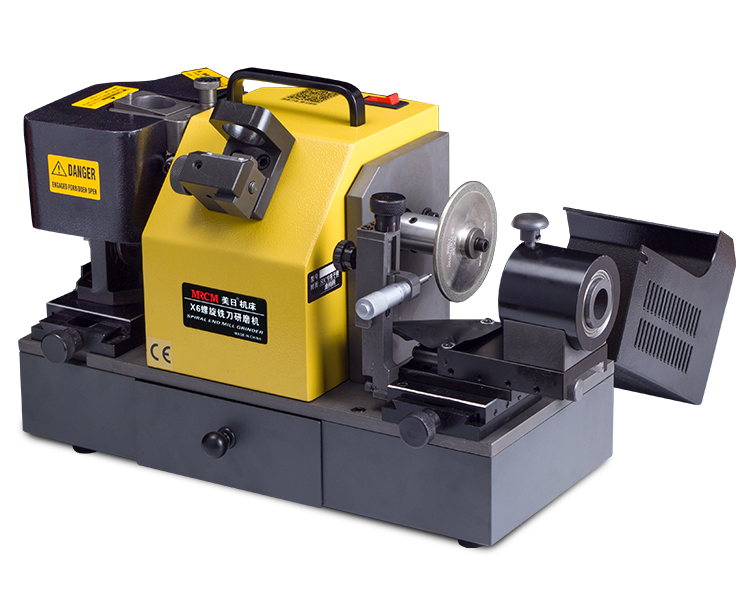

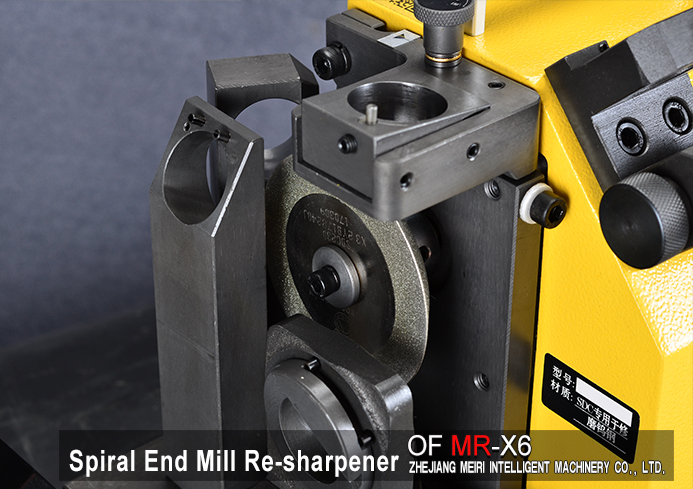

For end mill’s side grinding, all-in-one grinding seat, lengthening the installation distance of double bearings, increase stability.
end mill tool machine
The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life.
