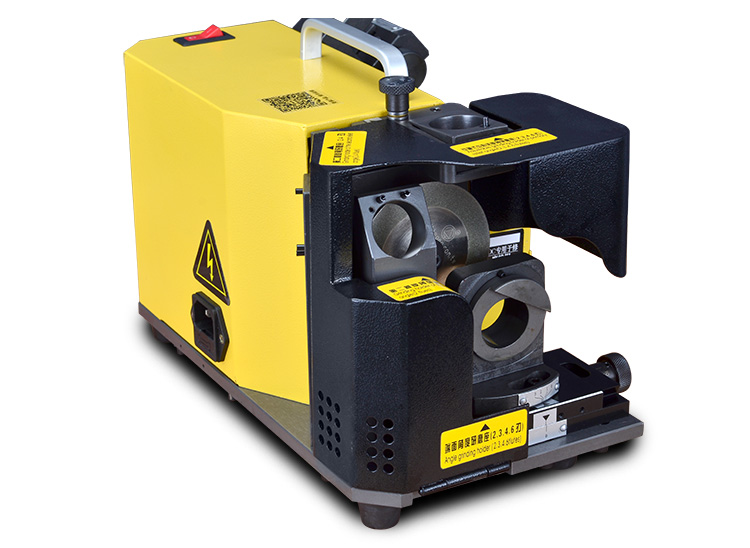

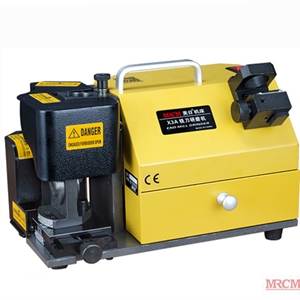

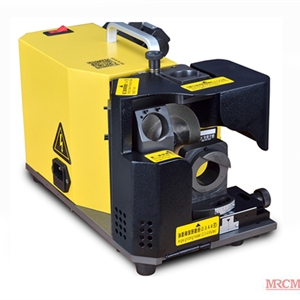

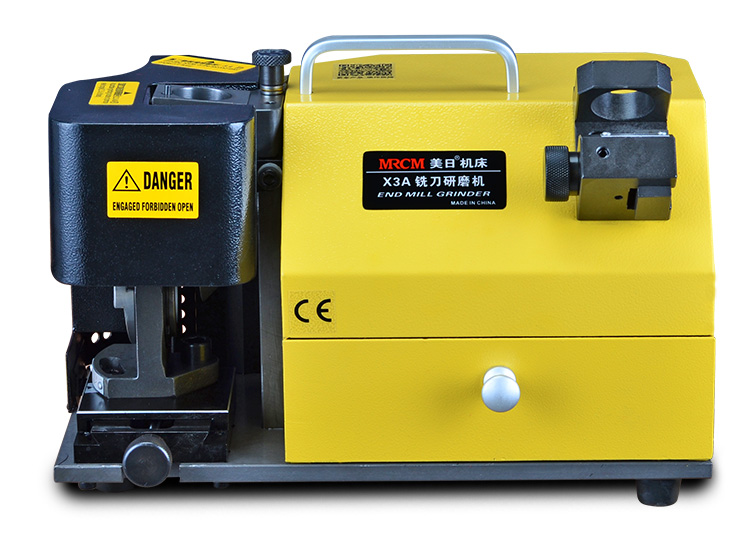

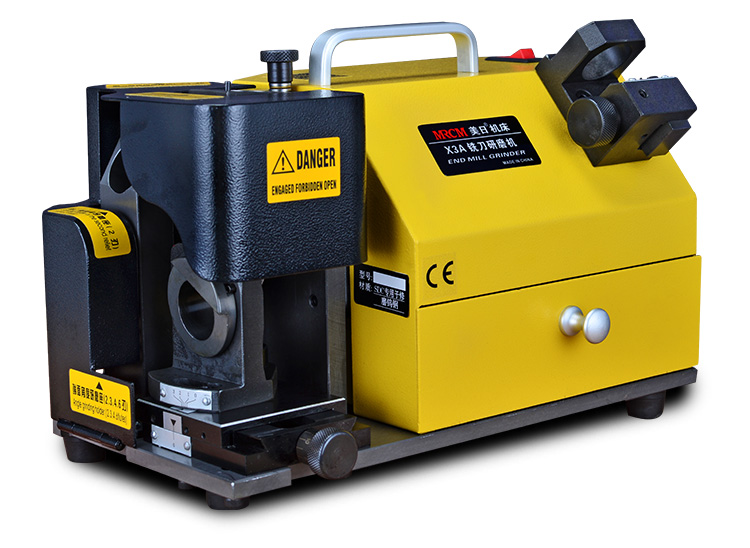

MR-X3A End Mill Re-sharpener

MILL SHARPENER Hits(279)
PRODUCT INSTRUCTION
1. Portable end mill grinder can grind two flute, three flute, four flute.
2. Grinding is accurate and rapid, easy operation, with no skill requirement to grind easily.

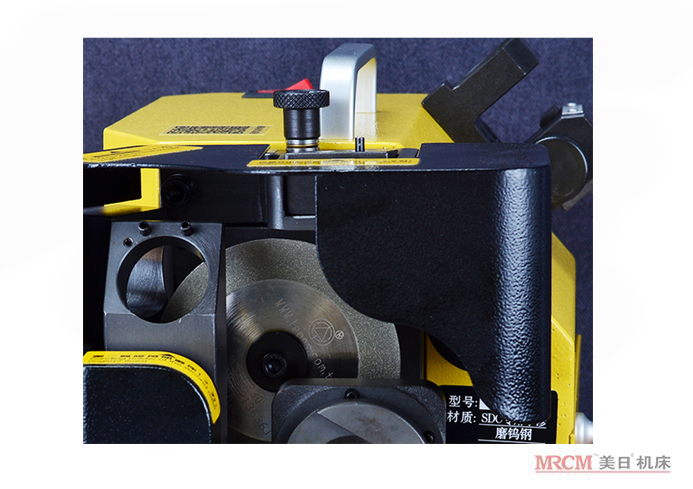

3. With diamond grinding wheel, only one piece can complete all procedures.  It can be equipped directly with an accurate angle and long service life.
SPECIFICATION
Model:MR-X3A
Diameter:Φ4-Φ20
Power:220V/160W
Speed:4400rpm
Point angle:0°-5°
Dimension:35×23×24cm
Weight:20kg

Standard Equipment
One piece grinding wheel :SDC230 (for Carbide)×1
One piece grinding wheel :SDC150 (for Carbide)×1
Six ER20 collets:  ф4、ф6、ф8、ф10、ф12、ф14
Three ER25 collets: Ф16、ф18、ф20

four collet chucks
2,4 flutes ×1 piece (4-14mm)
3,6 flutes×1 piece ( (4-14mm)
2,4 flutes ×1 piece (14-20mm)
3,6 flutes×1 piece ( (14-20mm)

Optional Equipment
grinding wheel :CBN230 (for HSS)  or  CBN150 (for HSS)
ball nose end mill machine
end mill drill grinding machine

easy operating best end mill grinder

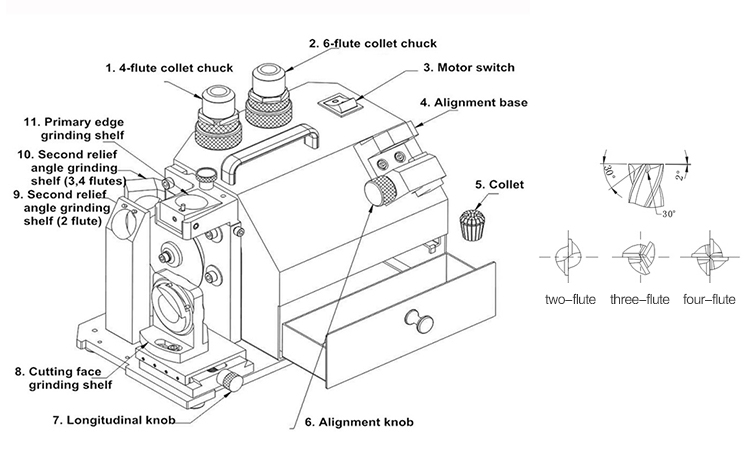

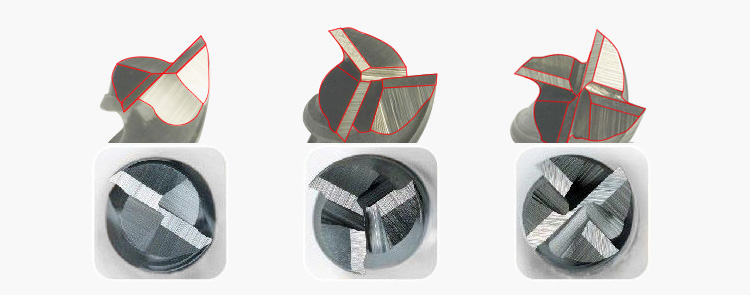

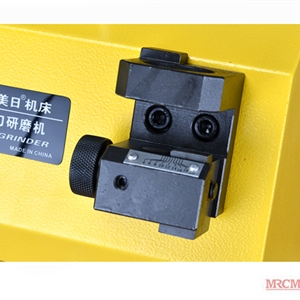

Fool type grinding design, grinding the end face, center Angle and clearance Angle of 2-edge, 3-edge and 4-edge end milling cutter respectively
sharpener end mill x6a
According to the material of milling cutter, it can be equipped with CBN grinding white steel cutter and SDC grinding wheel for grinding hard alloy
end mill and drill grinding machine
Compact body specification, single hand can lift, small space occupation, suitable for any place milling cutter grinding work.
