MR-F4 Complex Re-sharpener of mill & drill

Description:

  • The milling cutter can grind 2-flute, 3-flute, 4-flute
  • 2. Complex grinder machine of end mill and twist drill,
  • Grinding is accurate and rapid

More:

FEATURES:

PRODUCT INSTRUCTION
1. The milling cutter can grind 2-flute, 3-flute, 4-flute
2. Complex grinder machine of end mill and twist drill, one machine with two functions, complex MR-13D and MR-X3, reduce machine qty, easy to use, economical and practical.
3. Grinding is accurate and rapid, easy to operate, with no skill requirement to grind.
4. Standard with diamond grinding wheel, it is precise and with long service life.
5. Patent product, can grind the drill bit’s front cutting lip, point angle, and lip relief angle. It can control the centre spot at random instead of centre drill, escape of chips easily, drilling with a light heart.
Standard with CBN grinding wheel for the HSS material, Optional SDC grinding wheel for the carbide material.

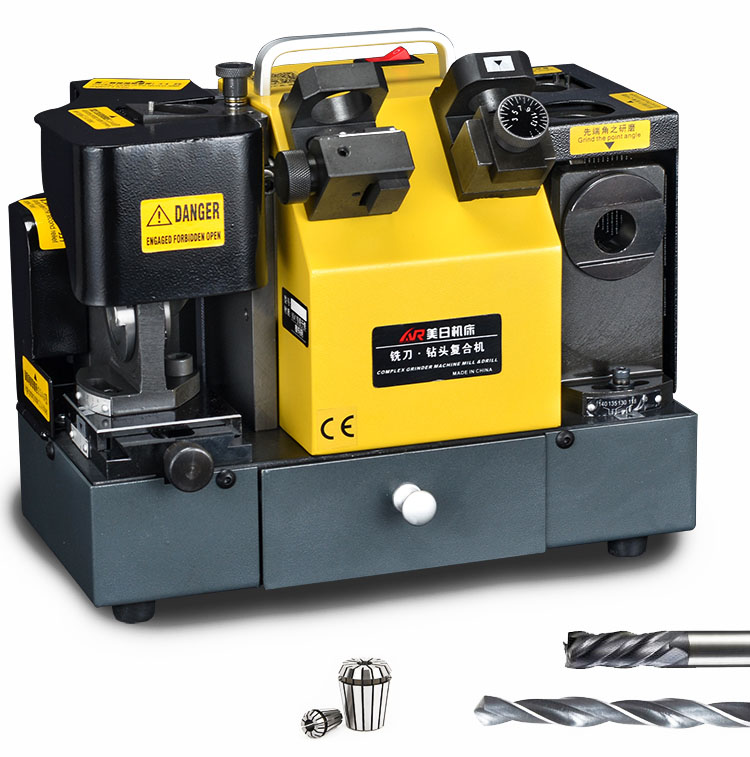

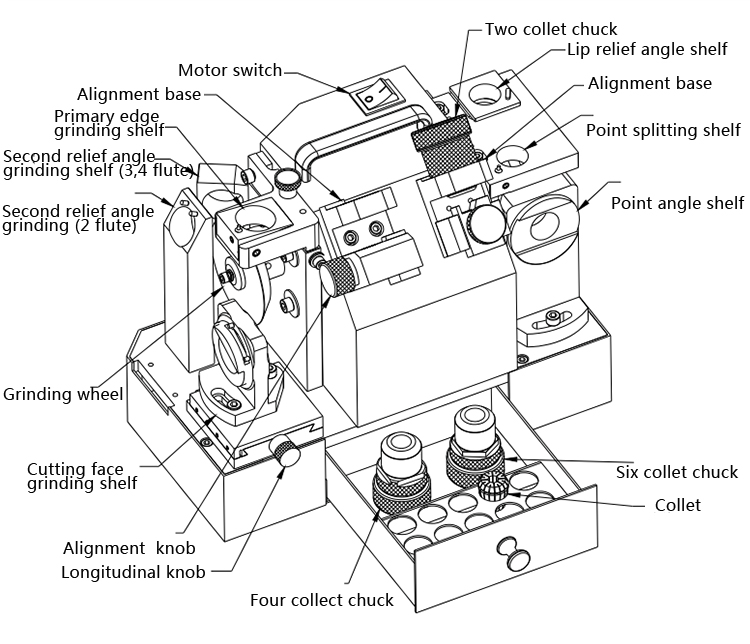

STANDARD EQUIPMENT
compound grinding machine

SPECIFICATION
Model:MR-F4
Diameter:Φ4-Φ14mm(End mill)    Φ3-Φ14mm( Drill bit)
Power:220V/160W
Speed:4400rpm
Point angle:0°-5°  (End mill)     95°(90°)~135°( Drill bit)
Dimension:35*23*30cm
Weight:20KG

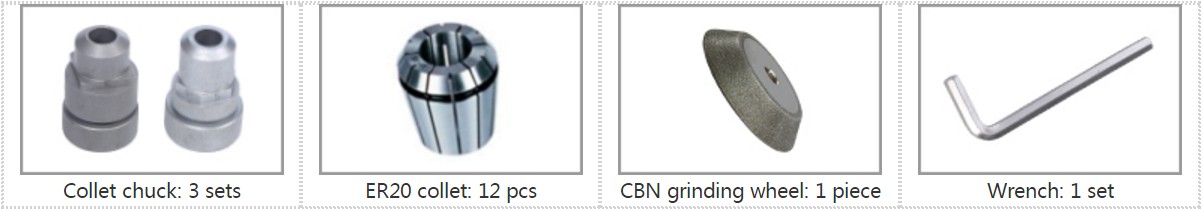

Standard Equipment:Grinding wheel :SDC (for carbide)×1    Grinding wheel :CBN (for HSS)×1
Twelve collets:Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13,Φ14
Two collet chucks:2,4 flutes ×1 piece; 3,6 flutes×1 piece
Collet chuck:(Φ2-Φ14)×1
Optional Equipment:Grinding wheel :CBN (for HSS)

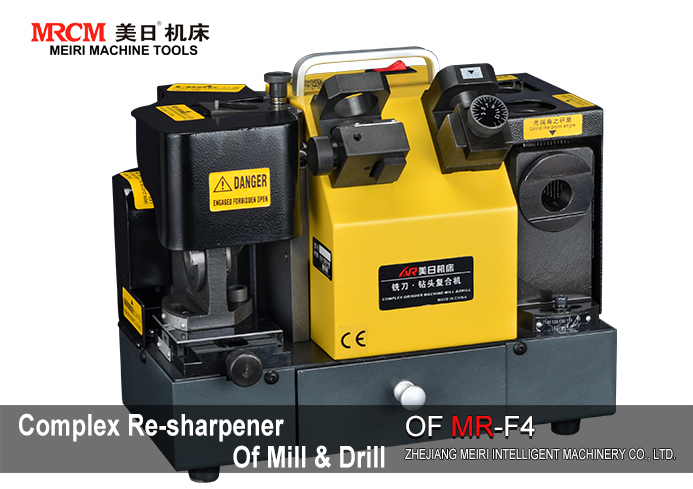

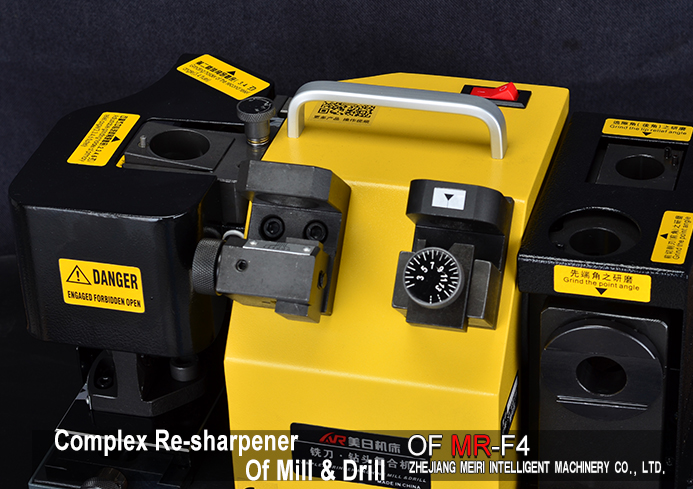

MR-F4

       COMPLEX RE-SHARPENER OF MILL & DRILL
 Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!

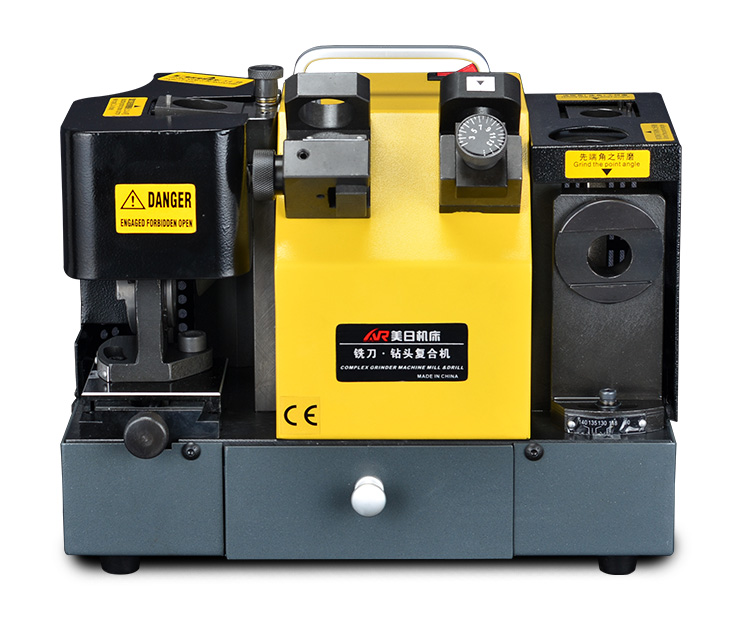

compound machine model
Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small or medium enterprises, family workshops, personal repair, all can achieve satisfying grinding results。

INSISTING ON ORIGINAL DESIGN FROM CHINA
compound of machine

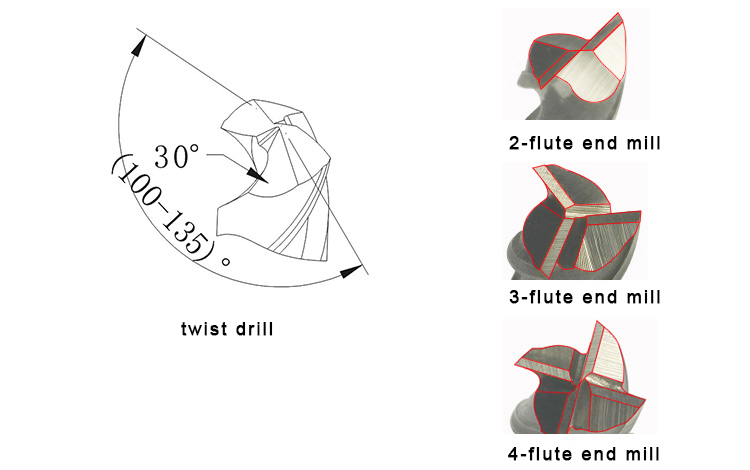

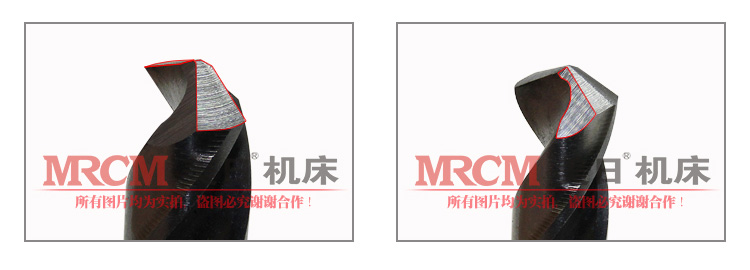

GRINDING EFFECT

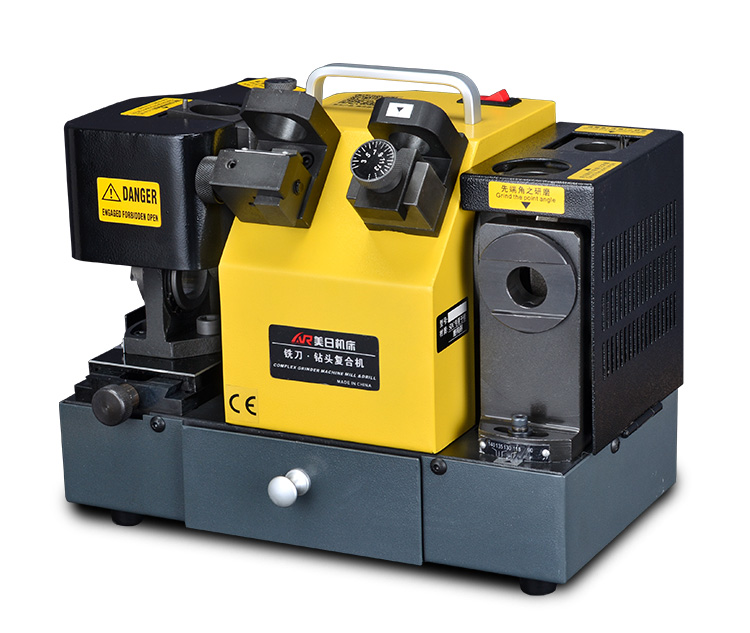

drill and mill compound machine
drill and mill compound machine
SMALL SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING.

complex drilling and tapping machine

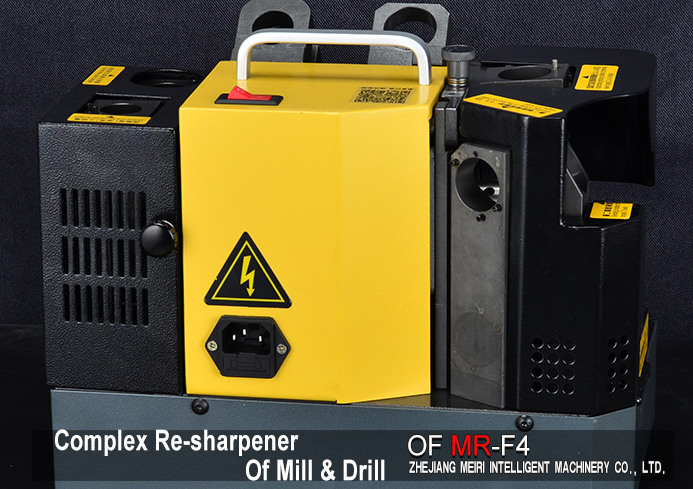

The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life.
fashional complex resharpener
Precise, rapid and easy operation without skills, easy grinding, save cost and enhance the using benefit.
complex machine model
