MR-F6 Complex Re-sharpener of mill & drill

Description:

  • Complex re-sharpener of end mill & drill

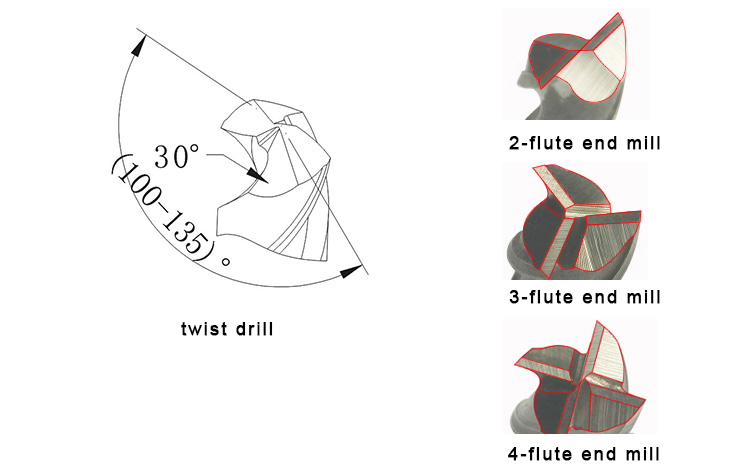

  • It is special equipment, can grind 2 -flute, 3-flute,4-flute
  • with no skill requirement to grind

More:

FEATURES:

PRODUCT INSTRUCTION
1. Complex re-sharpener of end mill & drill, one machine with two function, reduce machine qty, easy to use, economical and practical.
2. It is special equipment, can grind 2 -flute, 3-flute,4-flute . Optional fixture group can grind 5-flute. Accurate and rapid, easy to operate, with no skill requirement to grind, economical and practical.
3. The electrically controlled and powerful DC motor; stable frequency, strong horsepower and long service life.
4. Patent product, can grind the drill bit’s front cutting lip, point angle, and lip relief angle. It can control the centre spot at random instead of centre drill, escape of chips easily, drilling with a light heart.
Standard with CBN grinding wheel for the HSS material, Optional SDC grinding wheel for the carbide material.
STANDARD EQUIPMENT
complex resharpener machine

SPECIFICATION
Model:MR-F6
Diameter:Φ12-Φ30mm(End mill)    Φ13-Φ30(32)mm(Drill bit)
Power:220V/250W
Speed:4400rpm
Point angle:0°-5°(End mill)    95°(90°)~135°(Drill bit)
Dimension:35*25*30cm
Weight:48KG

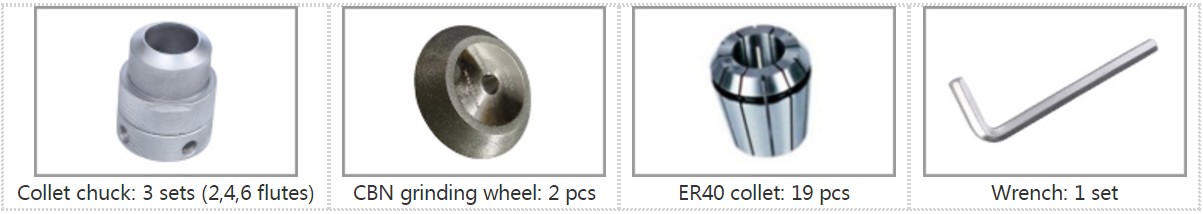

Standard Equipment:Grinding wheel:SDC(for carbide)×1    Grinding wheel:CBN(for HSS)×1
Nineteen collets:Φ12,Φ13,Φ14,Φ15,Φ16,Φ17,Φ18,Φ19,Φ20,Φ21,Φ22,Φ23,Φ24,Φ25,Φ26,Φ27,Φ28,Φ29,Φ30
Two collet chucks:2,4 flutes×1piece;  3,6 flutes×1piece
Collet chuck:(Φ12-Φ30)×1
Optional Equipment:Grinding wheel:CBN (for HSS)Drill collect chuck:32
Details

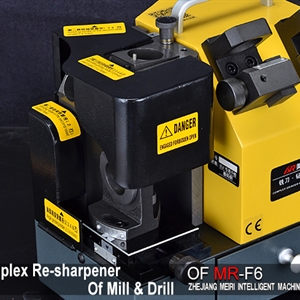

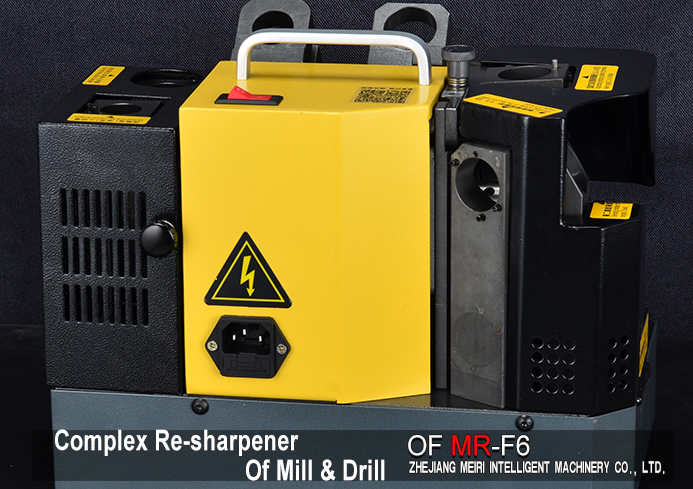

MR-F6
       COMPLEX RE-SHARPENER OF MILL & DRILL

More than10 YEAR BENCHMARKING PRODUCTS WITH A GREAT REPUTATION
complex lapping grinder
INSISTING ON ORIGINAL DESIGN FROM CHINA
complex drill ginder
SMALL SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING.

complex drilling and tapping machine
The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life.
mill drill complex grinding machine
Patent product, can grind the drill bit’s front cutting lip, point angle, and lip relief angle. It can control the centre spot at random instead of centre drill, escape of chips easily, drilling with a light heart.
