Easy to operate and learn,a novice user can become a specialist in a short time.
According to the different requirements of the grinding to change the cutting angle, tooth shape and tooth depth.
can easily grind out a sharp blade
Grinding saw blade material：HSS saw blade,Mn saw blade.

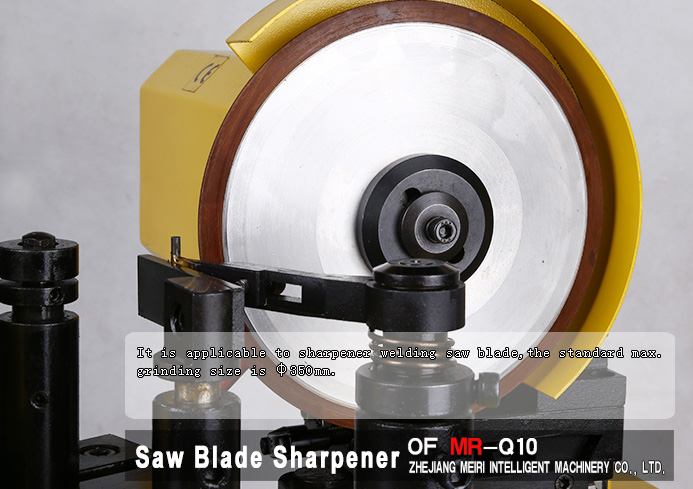

It can grind the saw blade diameter from 60-350MM.
It can grind different type of tooth.(left and right alternating teeth,cross teeth and up and down teeth)
According to different cutting requirements ,it can adjust the blade grinding time quickly.
The head can be swinged up or down at any tune,it can grind the chamfer without changing the grinding wheel.
The mechanical feed pawl end is welded tungsten carbide piece, it can reduce wear and tear: with the improved design,
the pushing arm can feed accurately.
With rigorous production control,the machine only need routine maintenance to ensure precision grinding.
SPECIFICATION
Saw Blade Dia.：60--350mm
Speed：4800rpm
Grinding Wheel Dia.：50mm
Power：250w
Dimension：62×55×44cm
Weight：56.5kg

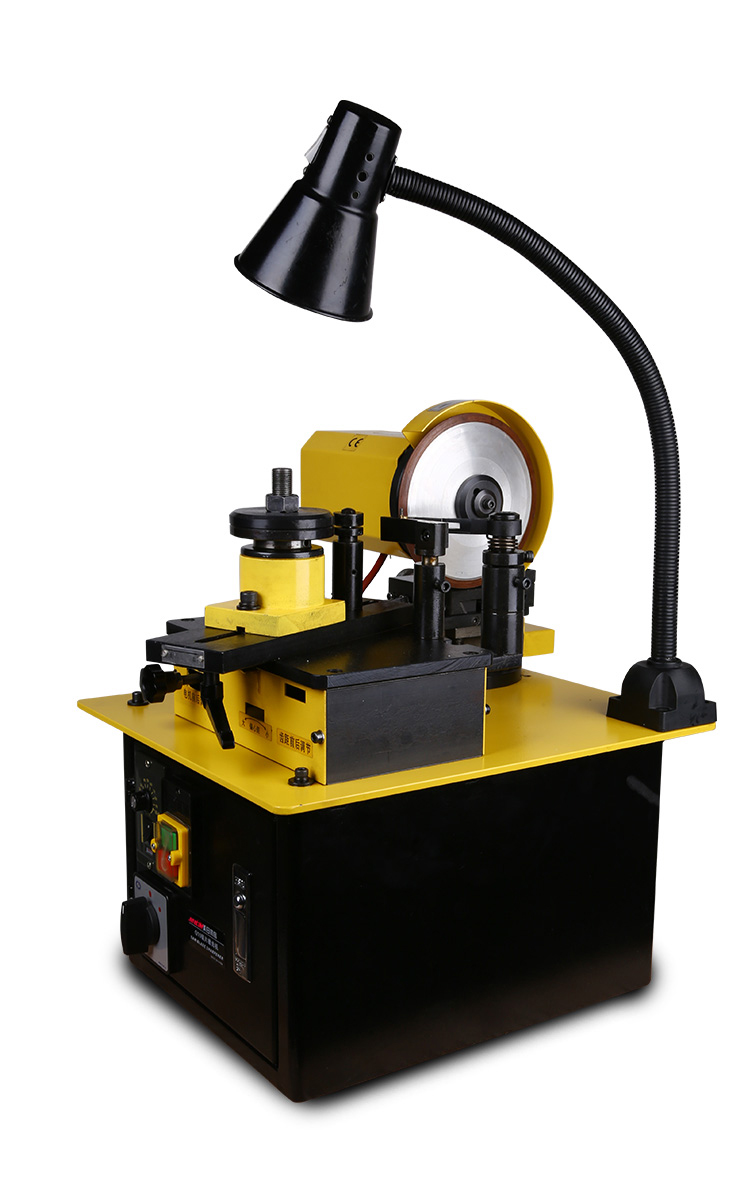

This machine is a new type of multi-functional gear grinding equipment for different tooth shapes of saw blades (such as cross teeth, left and right alternating wrong teeth).It is suitable for the grinding of variable tooth saw blade so as to reuse the old saw blade and reduce the waste of resources.
Using diamond grinding wheel is the best choice.We have many carbide-tipped cutters that work well with diamond wheels on ordinary tool grinders.Diamond grinding wheel with oil coolant can improve the roughness and machining efficiency after grinding.
