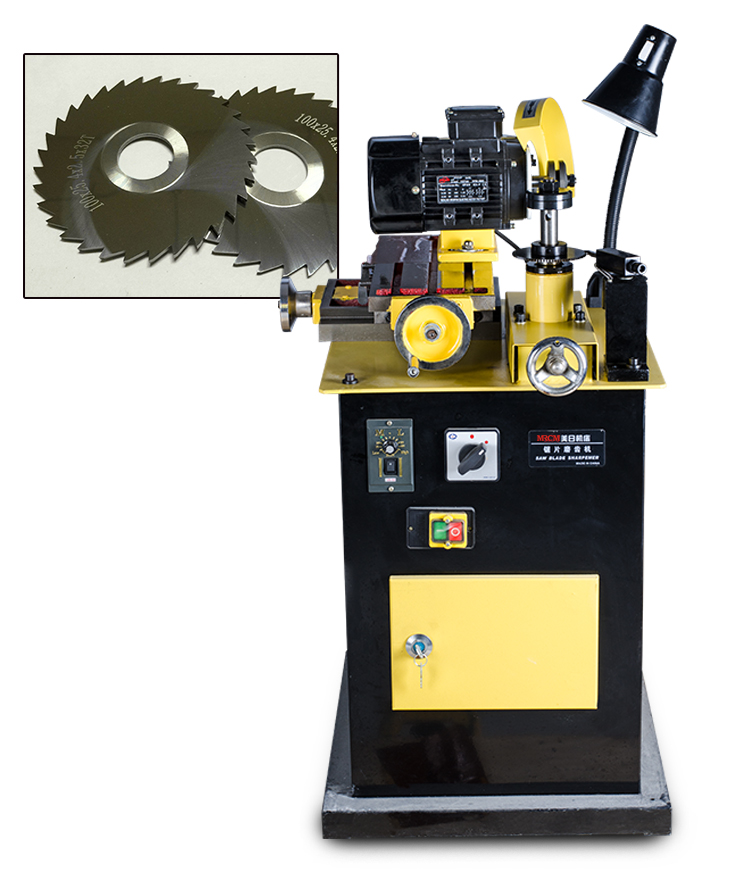

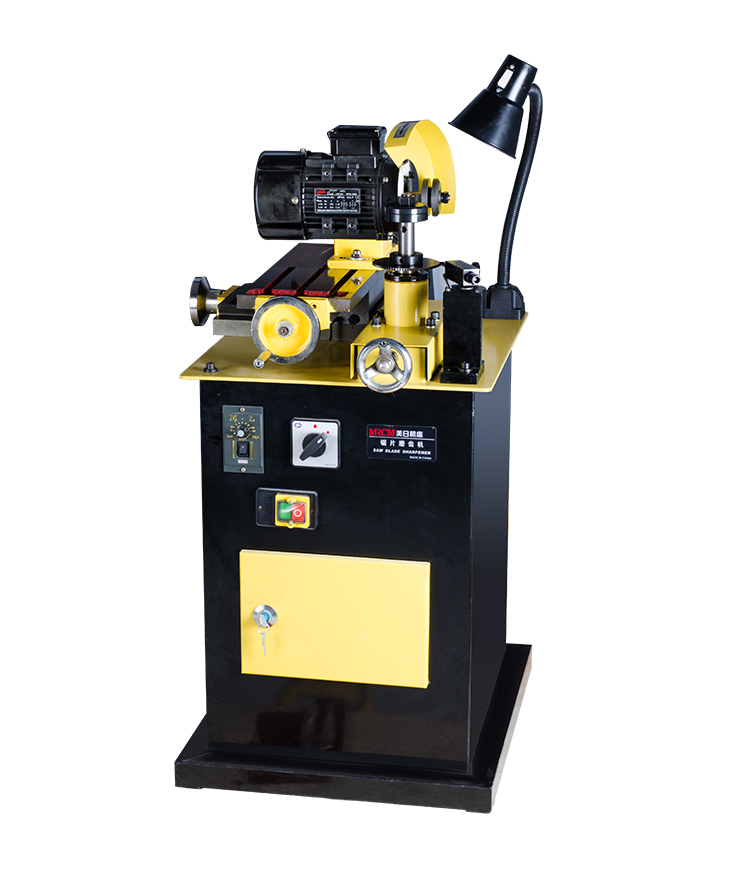

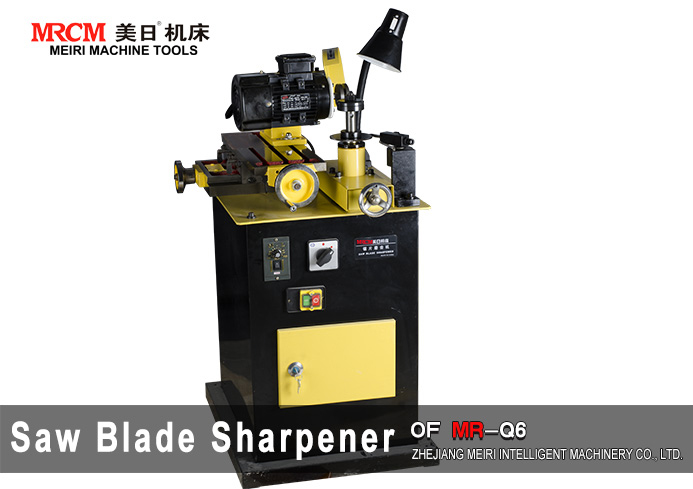

PRODUCT INSTRUCTION
1.The specific machine suitable for sheet blade grinding and tooth punching.

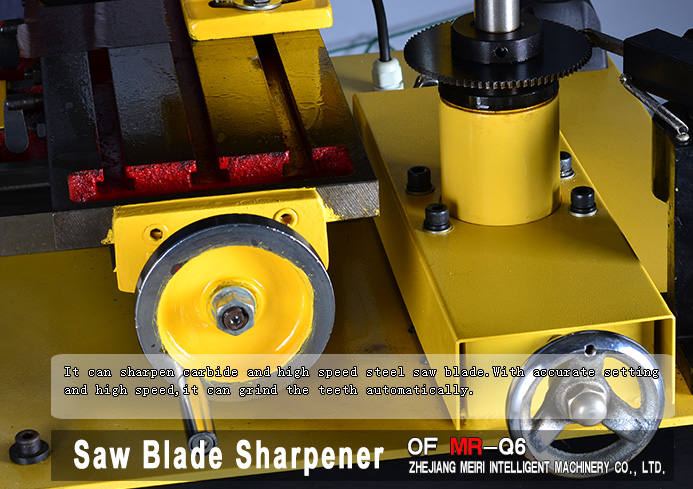

2.Rigid coordinate,high complex machine which can grind hard alloy and HSS blade.

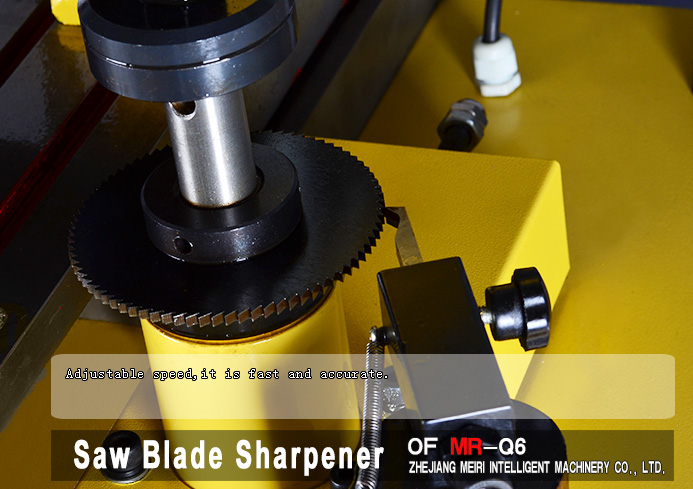

3.Automatic gear grinder can extract gear automatically,adjustable speed ,rapid and precise.

---

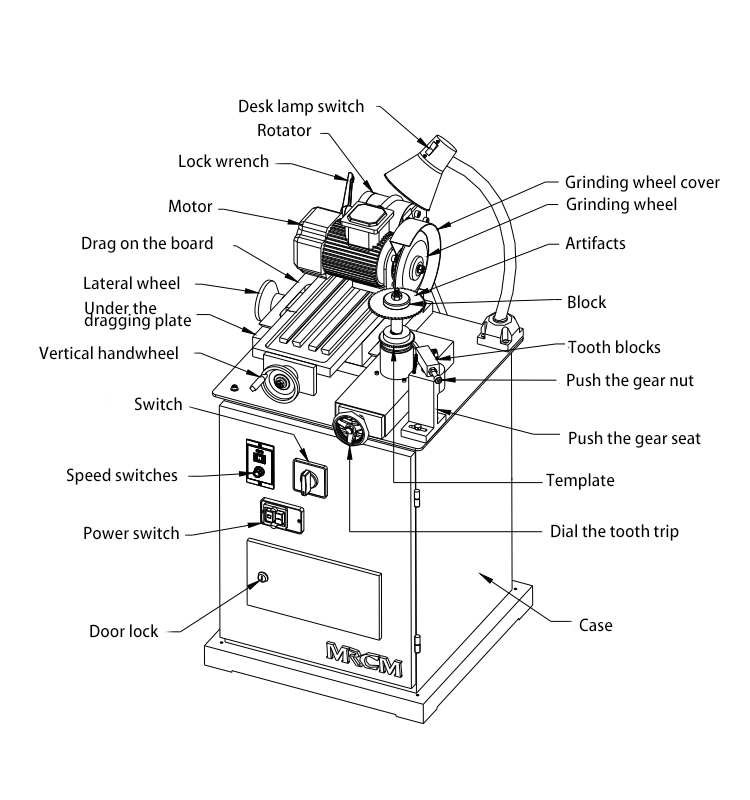

STANDARD EQUIPMENT

---

SPECIFICATION
model number:  MR-Q5
blade diameter:  ф60-ф300
customized  balde diameter ф25-ф350
rated voltage: 220V/380V
rotation speed:N=2820rmp
power: 90W

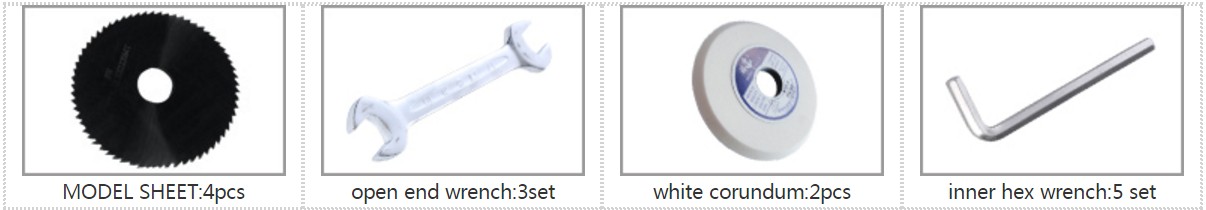

standard equipment  guiding gear sheet  Z=72  Z=80  Z=50  Z=60(gear)
packing dimension:  600×600×1000mm
net weight : 89kg
gross weight: 107kg

---
