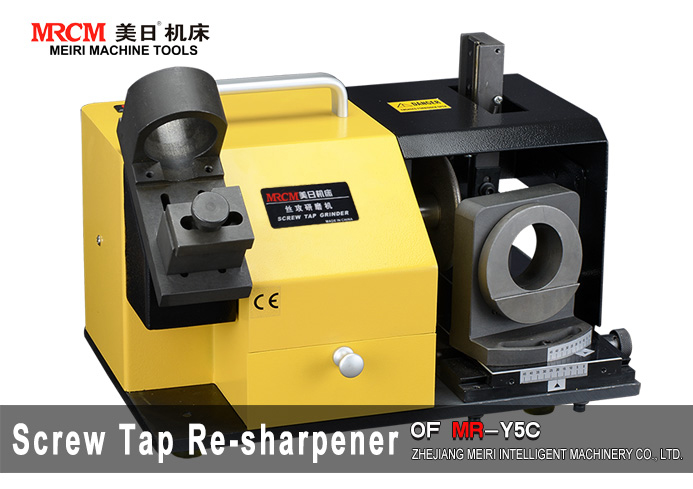

MR-Y5C Screw Tap Re-sharpener

Description:

VIDEO:

FEATURES:

PRODUCT INSTRUCTION
1.Specialize in grinding screw tap. It's precise, easy operation and efficient, also can save large sum of expense for purchasing blade annually.

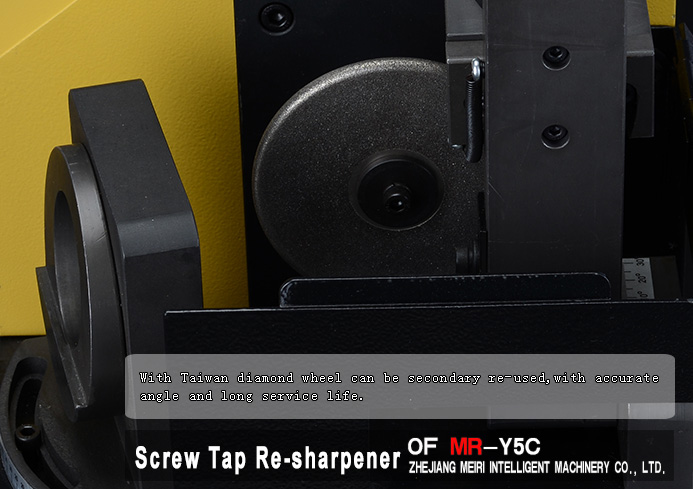

2. Send you  diamond wheel can be secondary re-used, with accurate angle and long service life.

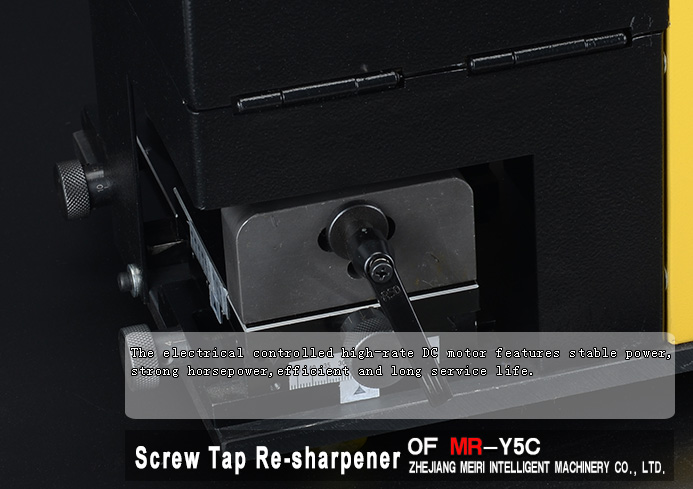

3. The electrical controlled high-rate DC motor features stable power, strong horsepower, efficient and long service life.

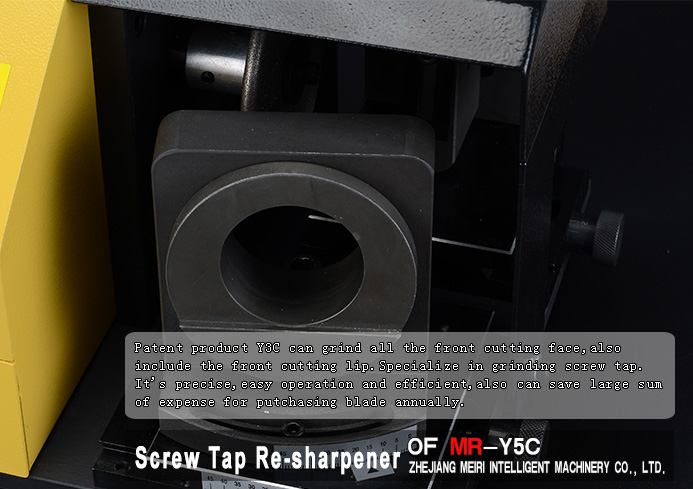

4. Patent product Y5C can grind all the front cutting face, also include the front cutting lip.
PRODUCT SPECIFICATION
Grinding range:M16-M42
Power:220V/250W
Speed:4400rpm
Point angle:5°-30°
Product size:40×30×31cm
Weight:27kg
Standard Equipment Grinding wheel:CBN (for HSS)×1
Nine collets:ф13、ф14、ф16、ф18、ф20 、ф23、ф25、ф28、ф30
Two collet chucks:3 flutes×1 pc; 4 flutes×1 pc
Optional Equipment  Grinding wheel :SD (for Carbide)

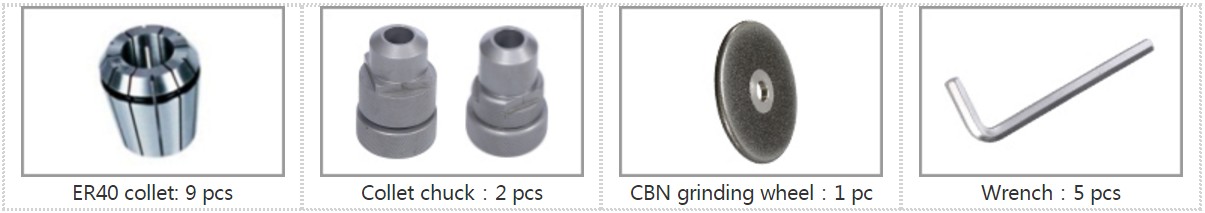

STANDARD EQUIPMENTS
screw tap sharpener

screw tap sharpener for hss

tap sharpener
Grinding is accurate and rapid,easy to operate,with no skill requirement to grind.
tap grinding tool
It is portable and patent screw tap grinder that can grind screw tap's all front cutting face.
tap grinding
It can grind 2-flute,3-flute and 4-flute spiral screw tap,choosing can grind 5-flute.With Taiwan diamond grinding wheel,it is accurate and with long service life.
