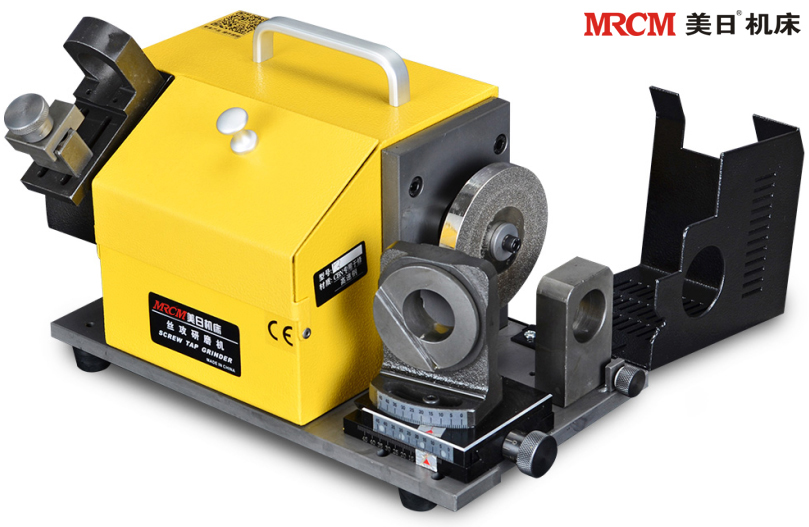

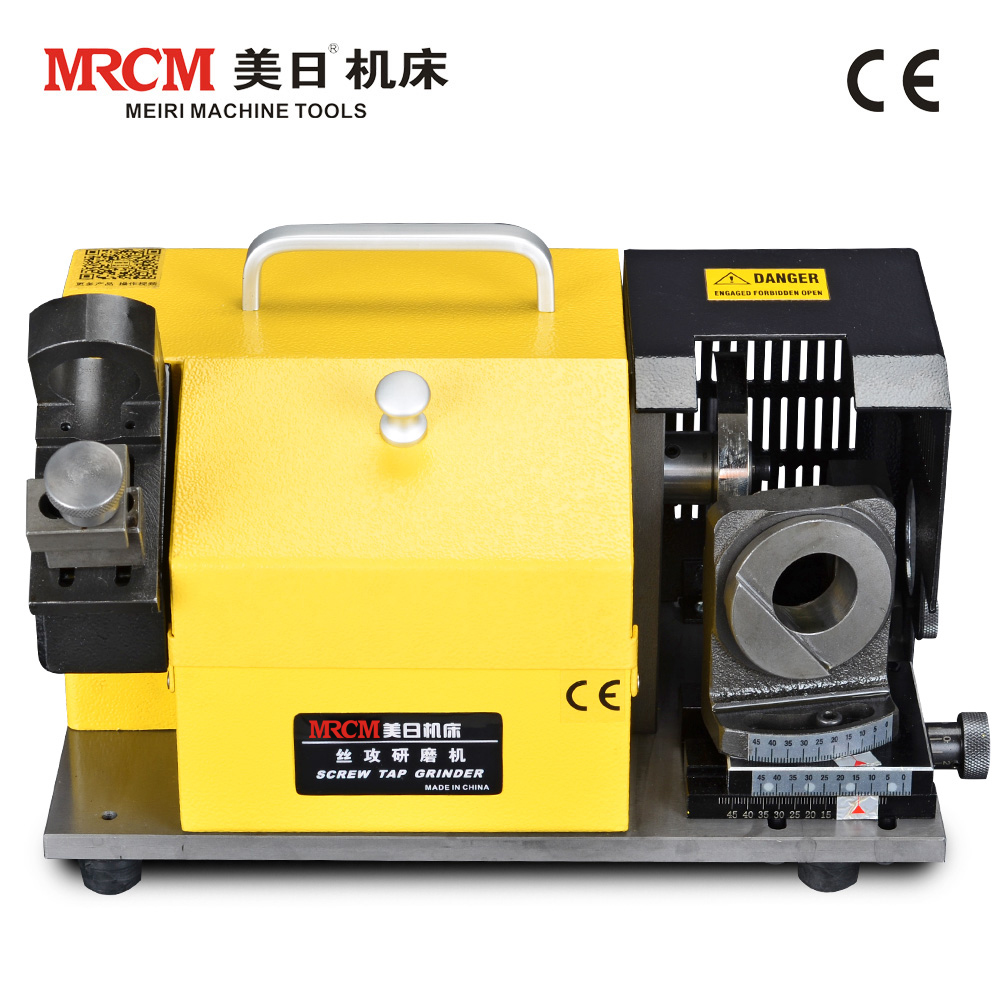

MR-Y3 Screw Tap Re-sharpener

Description:

VIDEO:

FEATURES:

This machine is a special equipment, which can grind 3-blade and 4-blade tap.Accurate, fast, simple operation, no skill can be easily grinding, saving costs, improve the use of efficiency.
Installation diamond grinding wheel, grinding wheel Angle design science, precise Angle, long life.
Electronic control DC motor: stable frequency, powerful horsepower, long - term use.
M20 tap shank is within 14 for grinding.
Specification
Model:MR-Y3
Range:M5-M20
Point Angle:5°-30°
Power:220V/160W
Motor:4400rpm
Dimension:35×24×24cm
Weight:12kg

Standard Equipment
Grinding wheel:CBN (for HSS)×1
Six collets:ф5、ф7、ф8、ф9、ф13、ф14
Two collet chuck:3 flutes×1 piece;  4 flutes×1 piece

Option Equipment
Grinding wheel:SD (for Carbide)
Product Demonstration

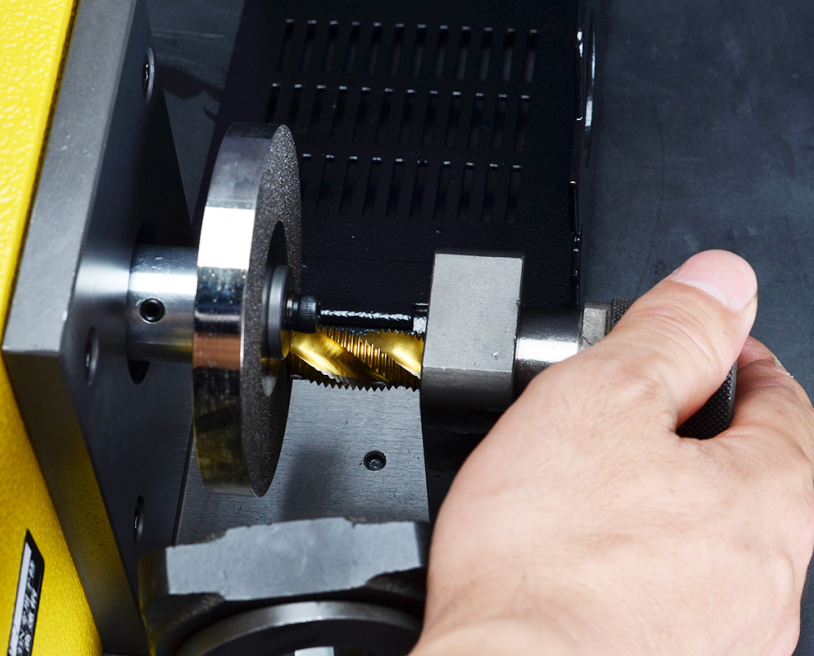

tap sharpener machine
Specialize in grinding screw tap. It’s precise, easy operation and efficient,also can save large sum of expense for purchasing blade annually.

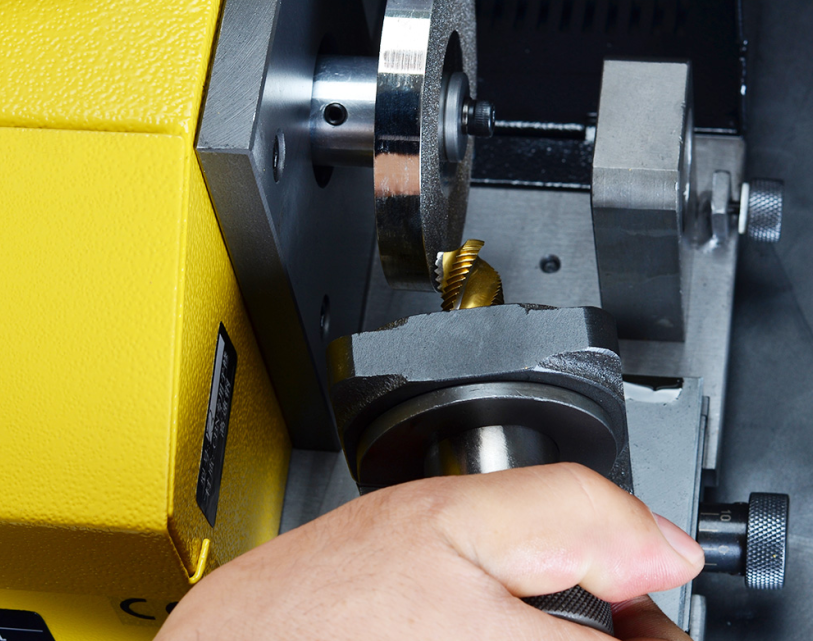

drill tap sharpener
The electrical controlled high-rate DC motor features stable power, strong horsepower, efficient and long service life.

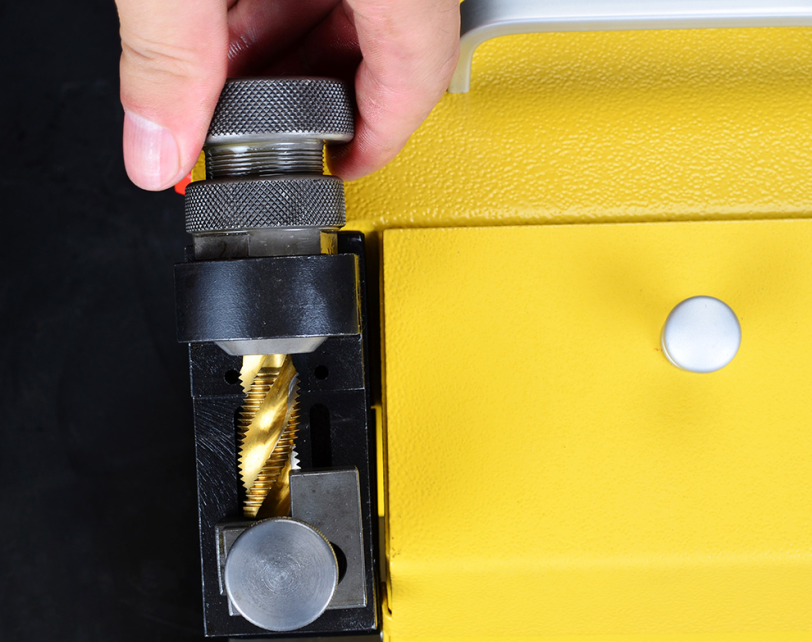

tap sharpening
With Taiwan diamond wheel, can be secondary re-used, with accurate angle and long service life.
