PRODUCT INSTRUCTION

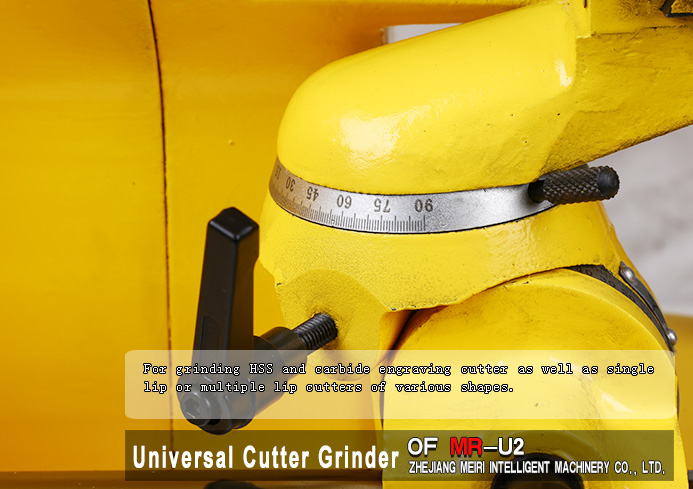

For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters.

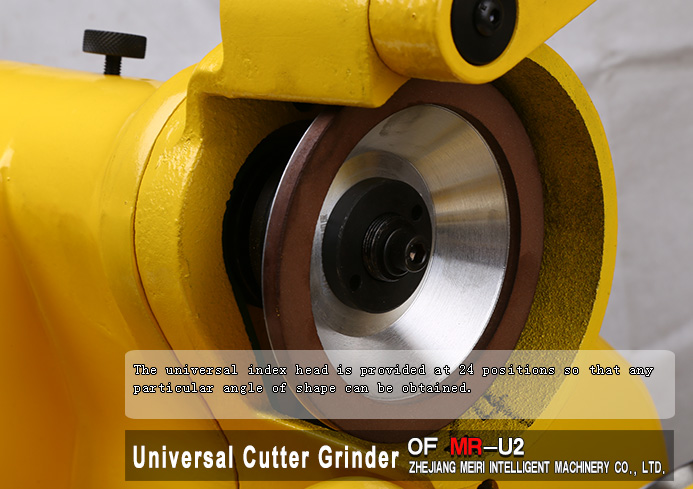

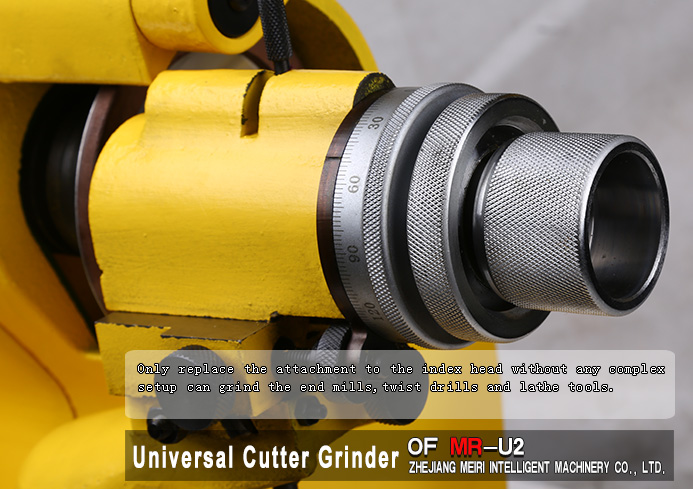

The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 3600 or 100 rotation is allowed for grinding End Mills、Twist Drill、Lathe Tools, only replace the attachment to the index head without any complex setup.

---

SPECIFICATION
Max. collet capacity: Φ18mm
Max. grinding dia. : Φ18mm
Taper angle: 0~ 180 (degree)
Relief angle: 0~ 45  (degree)
Negative angle: 0~ 25  (degree)
Motor: motor power: 220V/380V  50hz 1/3HP
Grinding spindle: 5300rpm
Grinding wheel: Φ100×50×Φ20
Dimension: 55*46*49cm
Weight: 51 kg

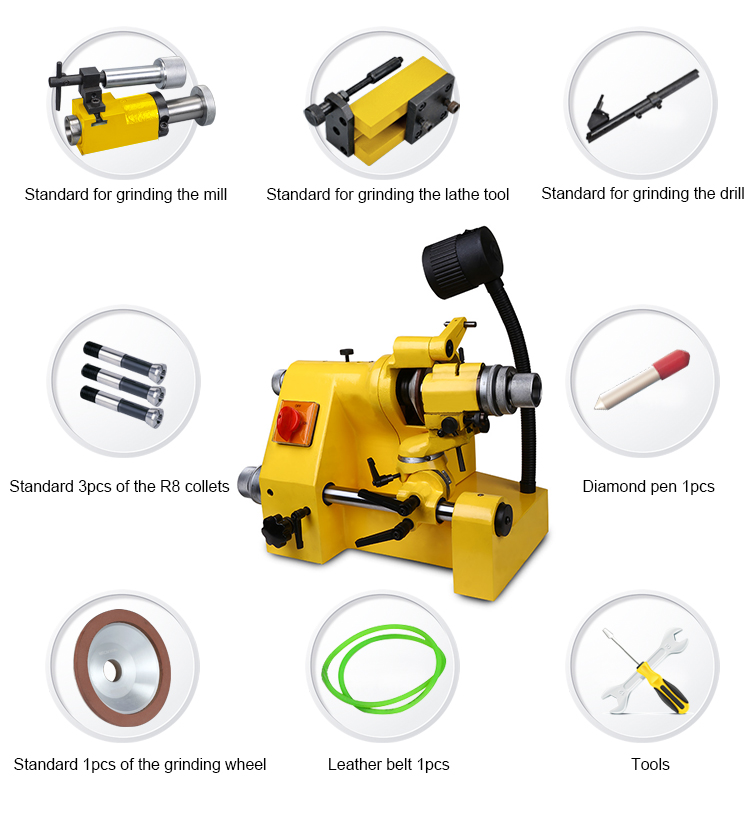

Standard Equipment: 3 collets: ф4, ф6, ф8
Grinding Wheel ×1
Twist drill grinding attachment×1
End mill grinding attachment×1
Lathe tools grinding attachment×1
Option Equipment: collets: ф3,ф1/8, ф5, ф9, ф10, ф12, ф14, ф16, ф18

---

Product Demonstration

---
