four zero position

Description:

  • Unlock mode: pneumatic unlock / hydraulic unlock Pneumatic automatic chip removal
  • Repeat positioning accuracy <0.005mm
  • Surface and piston hardening treatment

More:

FEATURES:

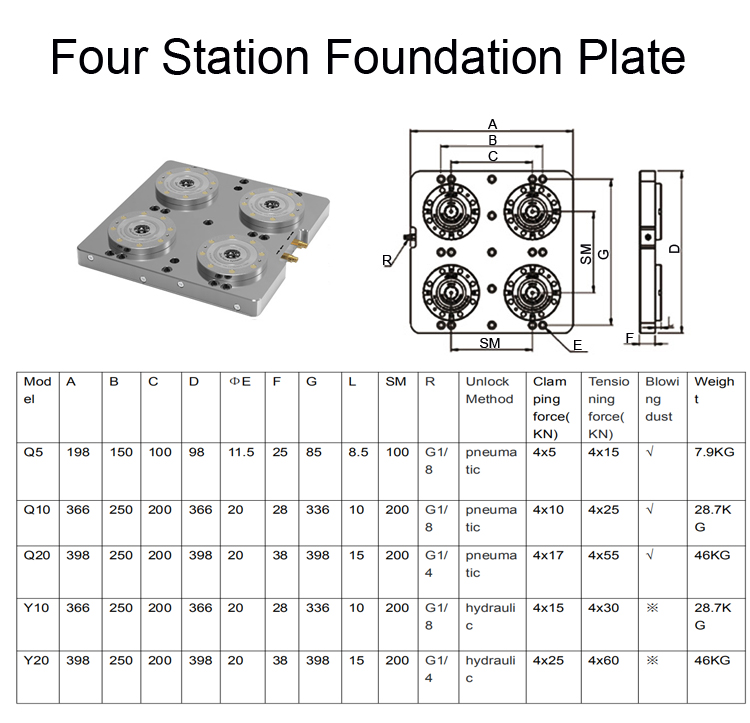

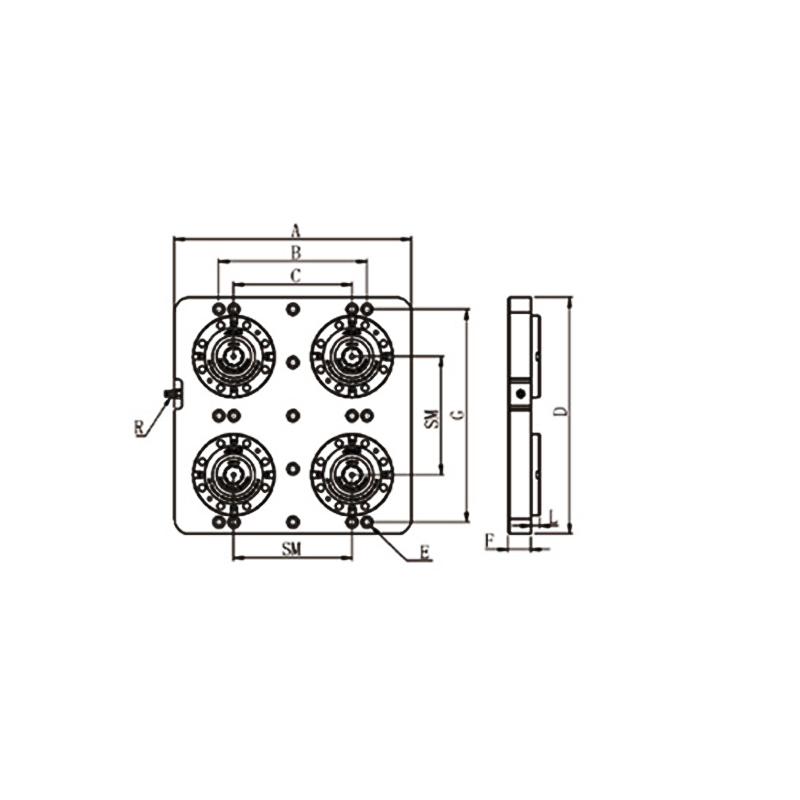

FOUR STATION FOUNDATION PLATE
FEATUERS:
Unlock mode: pneumatic unlock / hydraulic unlock
Pneumatic automatic chip removal
Material: die steel (#)
Surface and piston hardening treatment
Repeat positioning accuracy <0.005mm


 Design Features

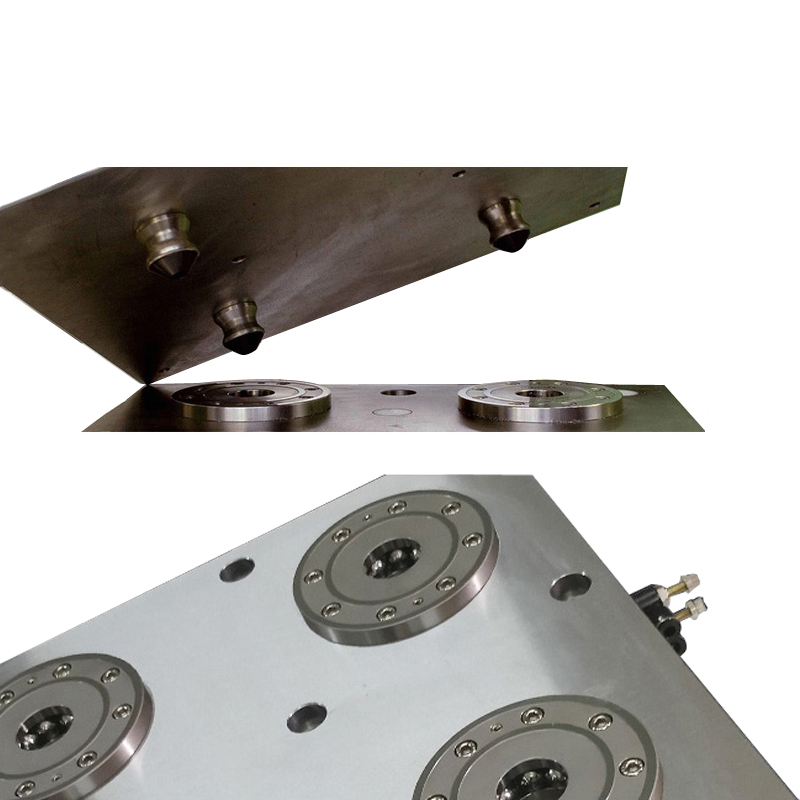

The UNILOCK is suitable for machine tool workstations with T groove spacing of 100 and 125mm, which are fastened
by countersunk head bolts. At least two positioning holes for accurate positioning.

The distance between two locator is 200mm. Pneumatic unlocking and installing pneumatic quick connector, hydraulic
unlocking and installing hydraulic quick connector, pneumatic dust removal performance interface can be selectively connected

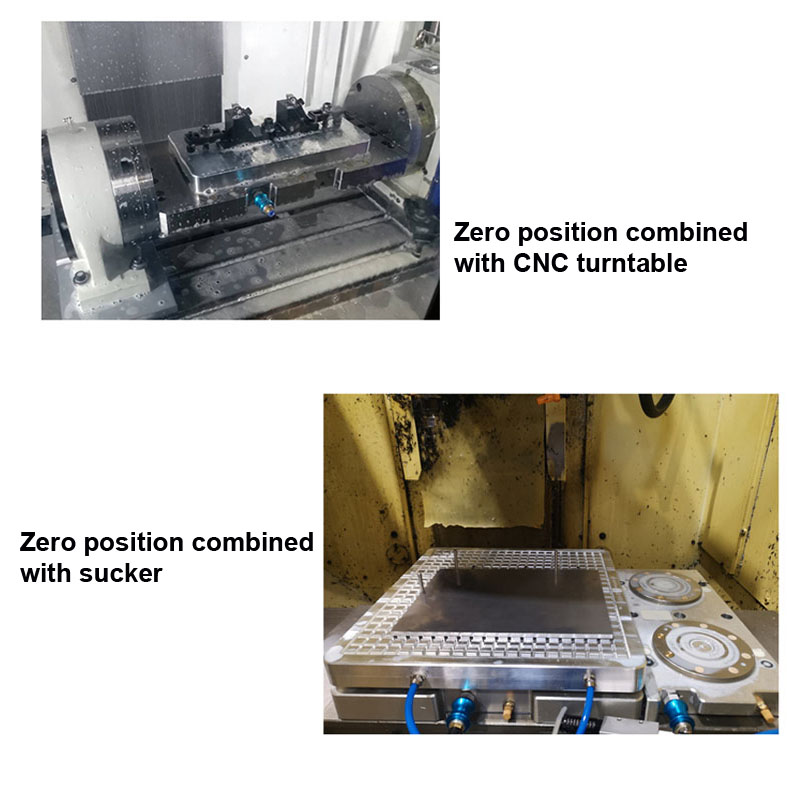

ZERO POSITION

 Zero point system clamp chuck

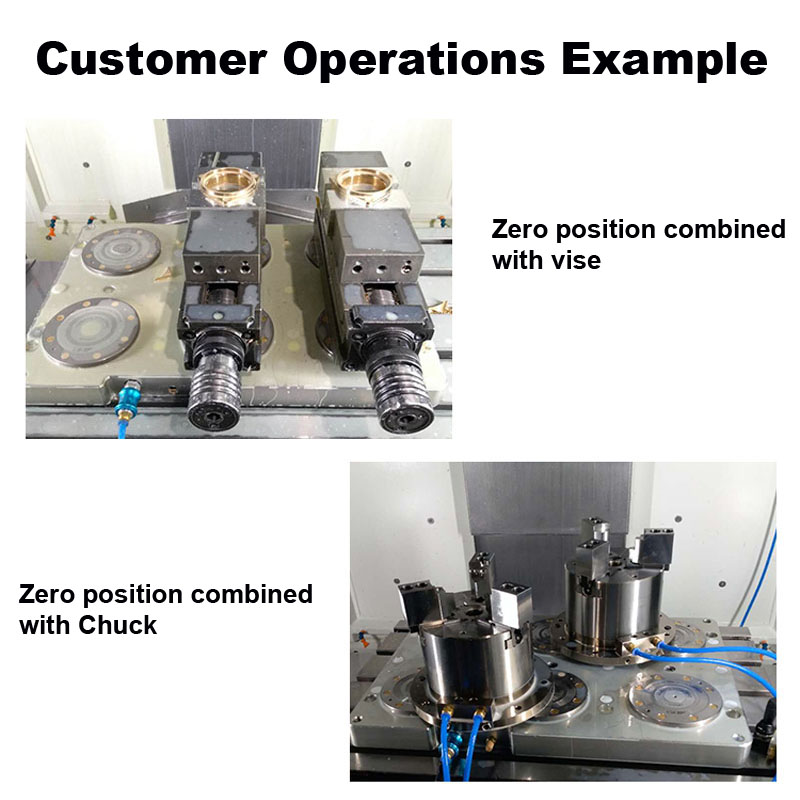

zero position with vise
combined with chuck
